产 品 说 明

ASE光源ASE-FL7701  -SCL波段-

ASE（放大自发辐射）光源是宽带光源，具有高亮度和宽的光谱范围。

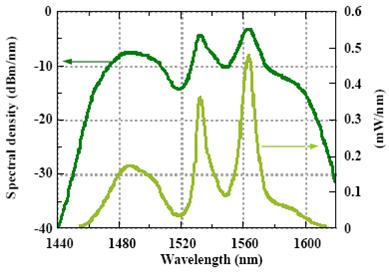

1.    ASE光谱







2.    标准规格



Item

ASE-FL7701

Output Wavelength Band

SCL Band

Output Power

>+11dBm(>13mW/port)

Spectral Power Density

>-25dBm/nm@1460

>-19dBm/nm@1480-1600nm

>-30dBm/nm@1610

Output Power Stability*1

<+/-0.01dB(typical<+/-0.005dB)

Output Fiber

SMF

Output Optical Connector

FC/ PC

Size(mm)*2

88mm(H)x260mm(W)x350mm(D)

Operation Temperature

0~40 Deg.C

Storage Temperature

-10~60 Deg.C

Weight

5Kg

Power Supply

AC100-240V(50/60Hz)

*1:15minutes stability after 1 hour warm-up    *2:Not including protrusions.



3.    选择项





Option 012

FC/angled-PC optical connector

Option 013

SC/ PC optical connector

Option 014

SC/angled-PC optical connector

Option 041

Spectrum flattening(See detail in Appendix)

Option 051

Dual output ports

·The specifications are subject to change.

·All functions,characteristics and exterior design can be optimized according to customer requirements.
