产 品 说 明

ASE光源ASE-FL7006  -CL波段-

ASE（放大自发辐射）光源是宽带光源，具有高亮度和宽的光谱范围。

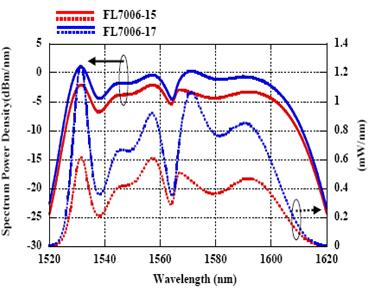

1.    ASE光谱







2.    标准规格



Item

ASE-FL7006-15

ASE-FL7006-17

Output Wavelength Band

CL Band

Output Power

>+15dBm(>31.6mW)

>+17dBm(>50mW)

Spectral Power Density

>-8dBm/nm@1528-1603nm

>-5dBm/nm@1528-1603nm

Output Power Stability*1

<+/-0.001dB

Output Fiber

SMF

Output Optical Connector

FC/ PC

Size(mm)*2

88mm(H)x260mm(W)x350mm(D)

Operation Temperature

0~40 Deg.C

Storage Temperature

-10~60 Deg.C

Weight

5Kg

Power Supply

AC100-240V(50/60Hz)

*1:15minutes stability after 1 hour warm-up    *2:Not including protrusions.



3.    选择项



Option 012

FC/angled-PC optical connector

Option 013

SC/PC optical connector

Option 014

SC/angled-PC optical connector

·The specifications are subject to change.

·All functions,characteristics and exterior design can be optimized according to customer requirements.
