产 品 说 明

ASE光源ASE-FL7050  -C波段-

ASE（放大自发辐射）光源是宽带光源，具有高亮度和宽的光谱范围。

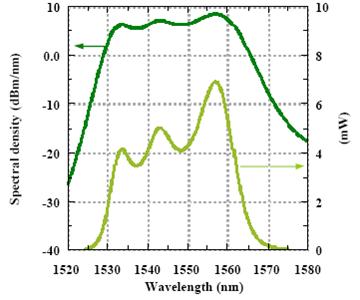

1.    ASE光谱







2.    标准规格



Item

ASE-FL7050

Output Power

>+22dBm(>150mW)

Spectral Power Density

>0dBm/nm@1530-1560nm

Output Power Stability*

<+/-0.005dB(typical<+/-0.001dB)

Output Fiber

SMF

Output Optical Connector

FC/ PC

Size(mm)*2

88mm(H)x260mm(W)x350mm(D)

Operation Temperature

0~40 Deg.C

Storage Temperature

-10~60 Deg.C

Weight

5Kg

Power Supply

AC100-240V(50/60Hz)

*1:15minutes stability after 1 hour warm-up    *2:Not including protrusions.



3.    选择项





Option 012

FC/angled-PC optical connector

Option 013

SC/ PC optical connector

Option 014

SC/angled-PC optical connector

Option 041

Polarized output

·The specifications are subject to change.

·All functions,characteristics and exterior design can be optimized according to customer requirements.
