产 品 说 明

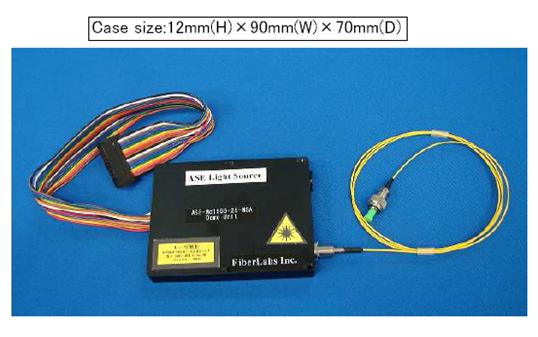

ASE光源模块 MSA型ASE光源模块
NO | Function | NO | Function |
1(Brown) | ASE output monitor | 11(brown) | VCC |
2(Red) | NC | 12(Red) | GND |
3(Orange) | NC | 13(Orange) | VCC |
4(yellow) | NC | 14(Yellow) | GND |
5(Green) | NC | 15(Green) | VCC |
6(Blue) | NC | 16(Blue) | GND |
7(Violet) | ASE output alarm | 17(Violet) | VCC |
8(Gray) | Pumping LD temperature alarm | 18(gray) | GND |
9(white) | VREF(+2.5V) | 19(white) | VCC |
10(Black) | External shutdown | 20(Black) | GND |
■Electrical specification
Oupput function | Monitor function | ASE power |
Alarm function | 3dB ASE power degradation gives alarm | |
Control function | LD shut down function | Pumping LD operation is shut down by TTL level L |
Others | Operation temperature | |
Storage temperature | -20~70 OC | |
Power supply | DC5V |
