输出功率 Output Power (mW)

1~1000

工作方式 Working Mode

CW

光斑模式Beam Mode

Quasi TE00

线宽Spectral Linewidth (nm)

<1.5

偏振方式 Polarization

Line polarization

偏振比Polarization Ratio

>50:1

光束质量Beam Quality (M2 factor)

<20

光束发散角Beam Divergence (full angle, mrad)

Square, ~3.0×3.0

光束直径Beam Diameter at Aperture (mm)

3.0×4.0

功率稳定性Power Stability (RMS, over 8 hours)

<5%

出光孔高度 Aperture Position (mm)

27

激光器

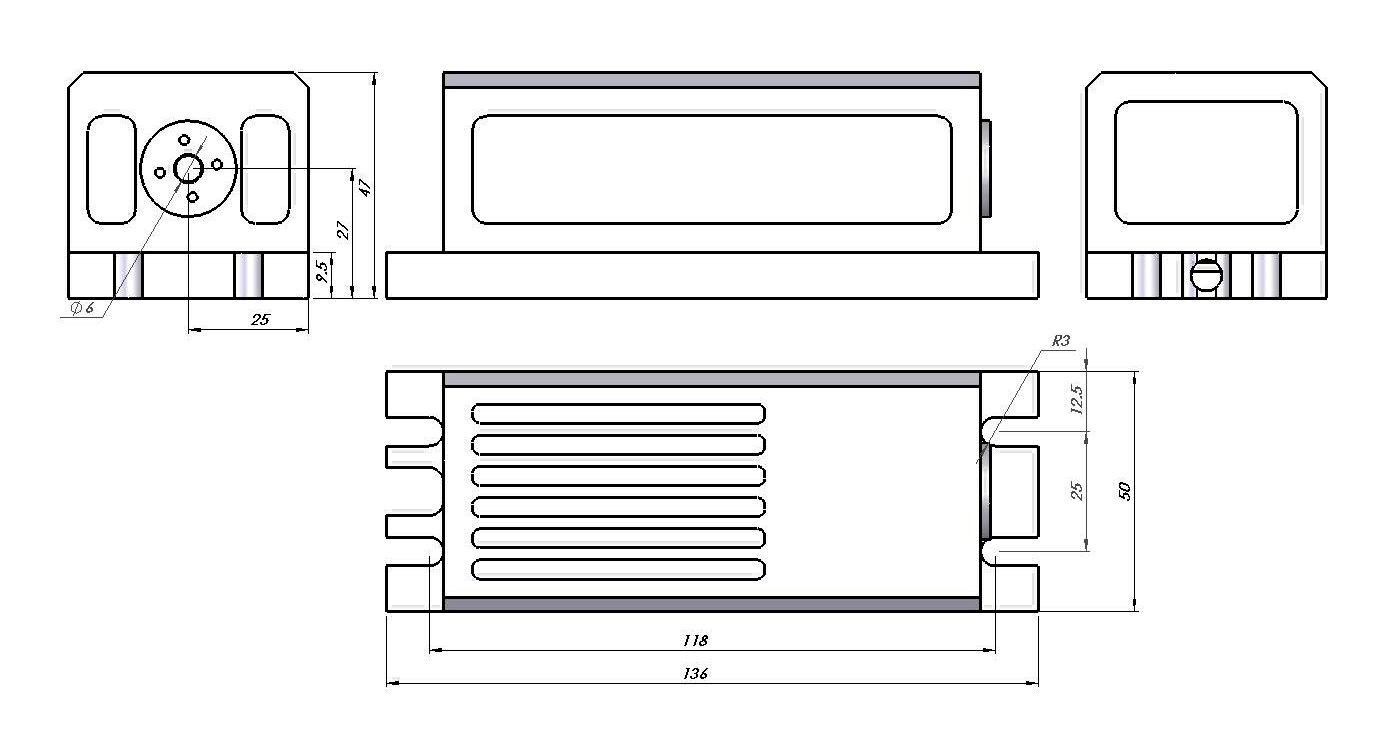

尺寸 Dimensions (L×W×H, mm)

136 x 50 x 47

Laser Head

重量 Net Weight (kg)

0.5

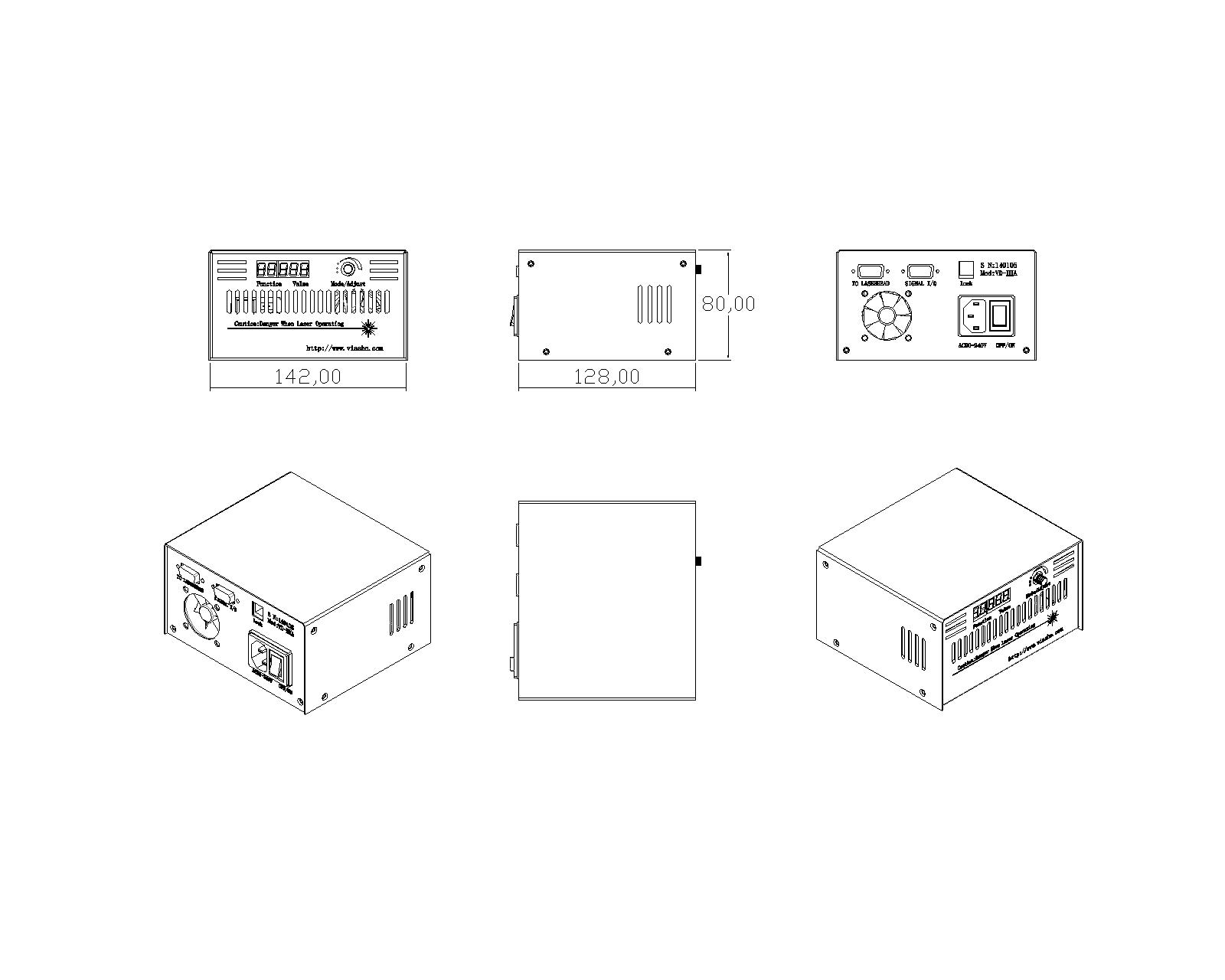

可配电源型号 Integrated Driver Model

VD-I Series / VD-II Series

电源调制External Modulation

5V TTL / 5V Analogue

调制速率Modulating Repetition

30KHz TTL / 10KHz Analogue

制冷方式Cooling System

TEC

预热时间Warm-up Time (minutes)

<15

工作温度Operation Temperature (℃)

18~30

使用寿命Expected Lifetime (hours)

>10000

保修期Warranty Time

1 year
