输出功率 Output Power (mW)

1~500

工作方式 Working Mode

CW

光斑模式

Beam Mode

横模 Transverse

TEM00

纵模 Longitude

Multi-longitude

线宽Spectral Linewidth (nm)

<0.1

偏振方式 Polarization

Line polarization

偏振比Polarization Ratio

>100:1

光束质量Beam Quality (M2 factor)

<1.2

光束发散角Beam Divergence (full angle, mrad)

1.2±0.2

光束直径Beam Diameter at Aperture (mm)

1.2±0.2

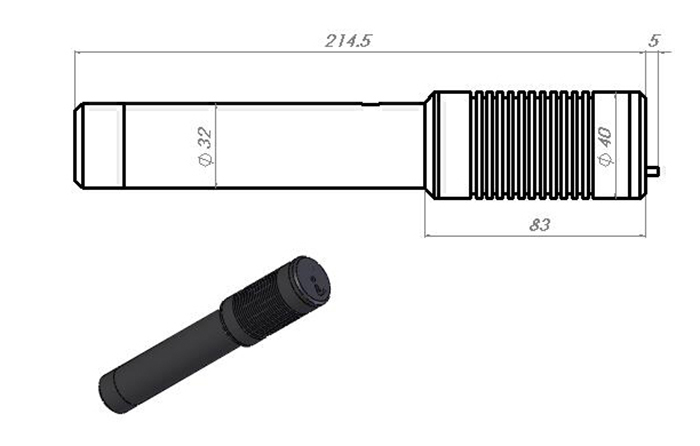

尺寸 Dimension (mm)

Dia.40x222.5

光束椭圆度 Beam Roundness

>90%

功率稳定性Power Stability (RMS, over 1 hours)

<15%

预热时间Warm-up Time (minutes)

<3

工作温度Operation Temperature (℃)

18~30

使用寿命Expected Lifetime (hours)

>5000

保修期Warranty Time

3 months
