波长Wavelength (nm)

532

Q开关Q-switched Crystal

Cr:YAG

单脉冲能量 Single Pulse Energy (uJ)

1~10

重复频率

Repetition (KHz)

可控 Controllable

1~5

不可控 Uncontrollable

5~100

平均功率 Average Power (mW)

S. P. Energy ×Repetition

工作方式Working Mode

Q-Switched Pulse

光斑模式

Beam Mode

横模 Transverse

TEM00

纵模 Longitude

Multi-longitude

线宽Spectral Linewidth (nm)

<0.1

偏振方式 Polarization

Line polarization

偏振比Polarization Ratio

>100:1

光束质量Beam Quality (M2 factor)

<1.2

光束发散角Beam Divergence (full angle, mrad)

1.2±0.2

光束直径Beam Diameter at Aperture (mm)

1.2±0.2

光束椭圆度 Beam Roundness

>90%

出光孔高度 Aperture Position (mm)

27

激光器

Laser Head

尺寸 Dimensions (L×W×H, mm)

136 x 50 x 47

重量 Net Weight (kg)

0.5

可配电源型号 Integrated Driver Model

VD-II-Q

制冷方式Cooling System

TEC

预热时间Warm-up Time (minutes)

<15

工作温度Operation Temperature (℃)

18~30

使用寿命Expected Lifetime (hours)

>10000

保修期Warranty Time

1 year

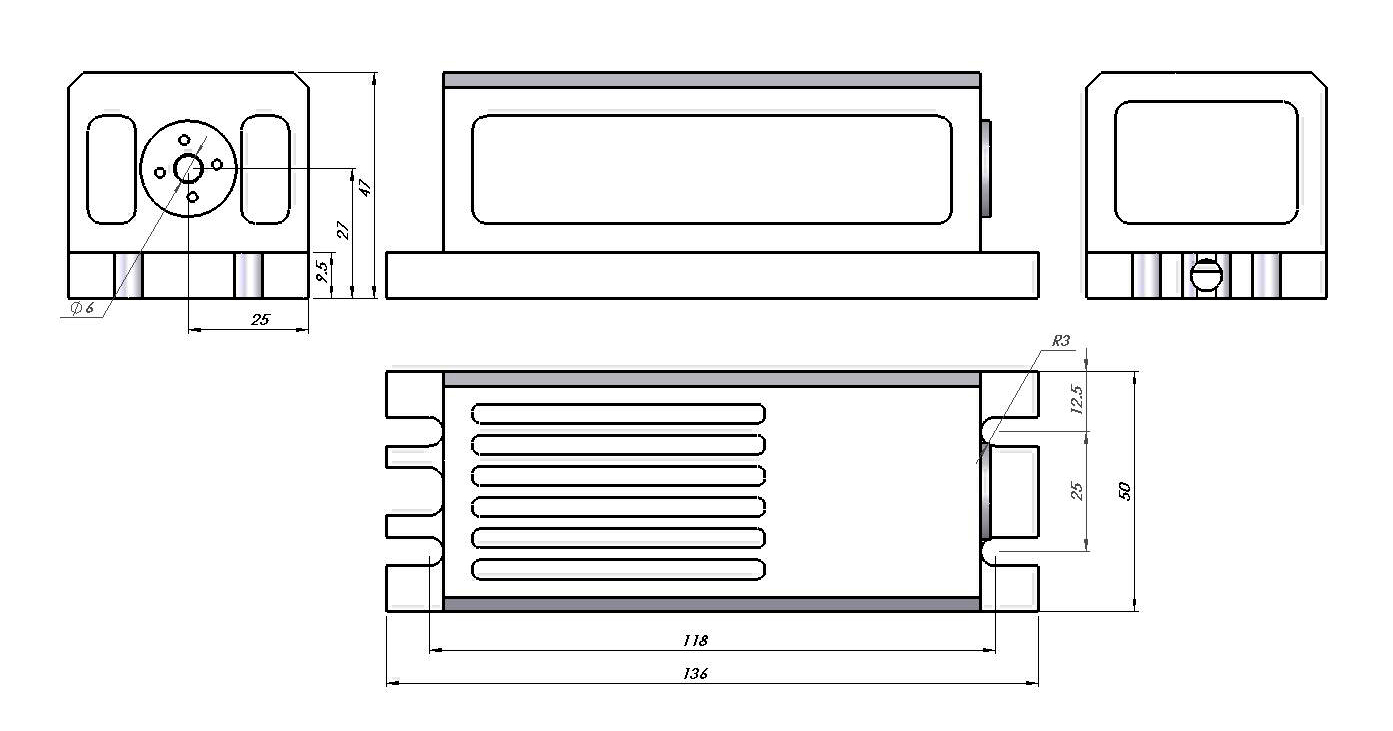

激光器机械尺寸图:(点击图片查看大图)

  VA-I-Q-532 (532nm-被动调Q脉冲激光器-1~30mW)

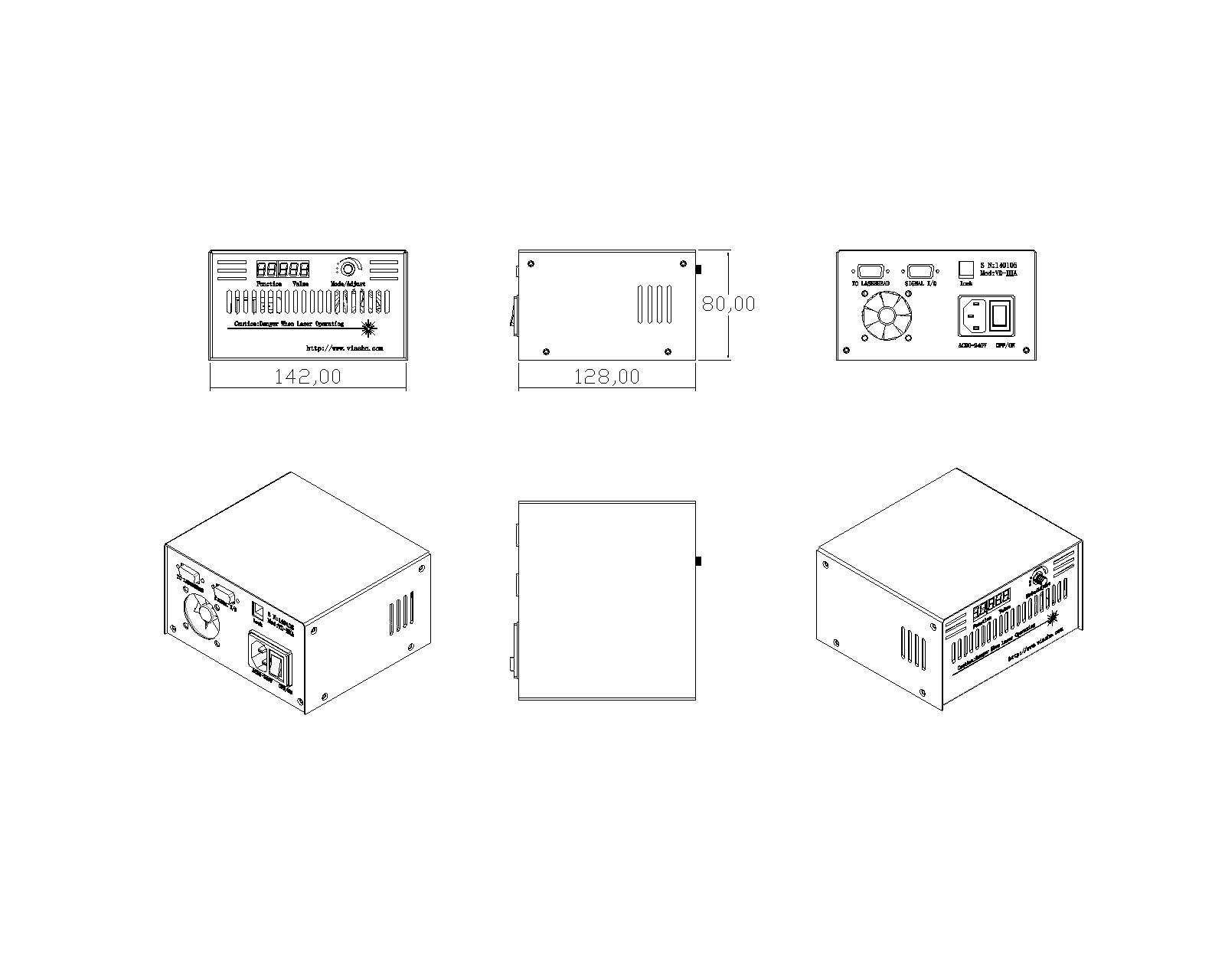

激光器电源尺寸图:(点击图片查看大图)

  VA-I-Q-532 (532nm-被动调Q脉冲激光器-1~30mW)
