405nm拉曼激光器

NBET-III-400/405/410/415

VIOLET DIODE LASER AT 400/405/410/415nm

Violet diode laser module at 400/405/410/415nm is made features of ultra compact, long lifetime, low cost and easy operating, which is used in measurement, communication, spectrum analysis, etc.

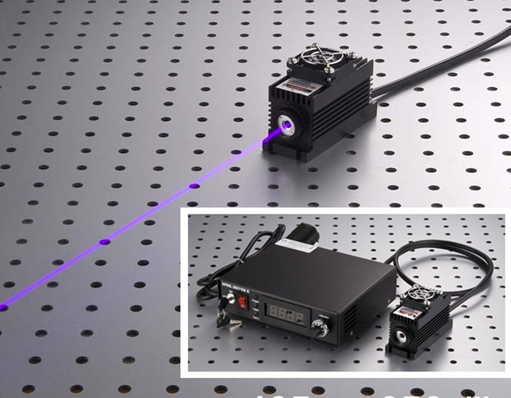

产品图片



技术参数



Model

NBET-III-400

NBET-III-405

NBET-III-410

NBET-III-415

Wavelength (nm)

400±5

405±5

410±5

415±5

Operating mode

CW

Outputpower(mW)

>1,2,3, …,300

>1, 2, 3, …,500

>1, 2, 3, …,300

>1, 2, 3, …,300

Power stability (rms, over 4 hours)

<1%, <3%, <5%

Transverse mode

Near TEM00

M2 factor

<1.5 (<1.2, optional)

Beam diameter at the aperture (1/e2,mm)

~2.5 (~1. 0, optional)

Beam divergence, full angle (mrad)

0.5

Polarization ratio

>50:1(>100:1,optional)Horizontal±5degree(VerticalOptional)

Warm-up time (minutes)

<5

Pointing stability after warm-up (mrad)

<0.05

Beam height from base plate (mm)

24.8

Operating temperature (℃)

10~35

Power supply (85-264VAC)

PSU-III-LED/ PSU-III-FDA

TTL / Analog modulation

TTLorAnalogwith1Hz-1KHz1KHz-10KHz,10KHz-30KHzoptional

Expected lifetime (hours)

10000

Warranty

1 year
