产品特点
● 宽通带范围
● 低插入损耗
● 高通道隔离度
● 稳定工作特性
技术参数
Specifications | ||||||
Parameter | Unit | Value | ||||
Center Wavelength (λc) | nm | 1030/1053/1064nm | ||||
Min. Pass Bandwidth @ -0.5 dB | nm | 2 | 5 | 8 | 14 | 22 |
Max. Stop Bandwidth @ -25 dB | nm | 12 | 18 | 20 | 48 | 50 |
Center Wavelength | nm | 1030 | ||||
Min. Pass Bandwidth @ -0.5 dB | nm | 2 | 8 | 25 | ||
Max. Stop Bandwidth @ -25 dB | nm | 12 | 22 | 50 | ||
Max. Insertion Loss | dB | 1.0 | ||||
Min. Return Loss | dB | 50 | ||||
Max. Polarization Dependent Loss | dB | 0.1 | ||||
Thermal Stability | dB/℃ | ≤ 0.005 | ||||
Max. Average Optical Power | W | 3 | ||||
Max. Peak Power for ns Pulse | kW | 5 | ||||
Max. Tensile Load | N | 5 | ||||
Fiber Type | HI 1060 fiber or Specify | |||||
Operating Temperature | ℃ | -5 to +70 | ||||
Storage Temperature | ℃ | -40 to +85 | ||||
备注：*.有所指标皆为未不含接头指标，切仅在以上波长，偏振态和温度下确保有效
**.指标若有更改，恕不另行通知。

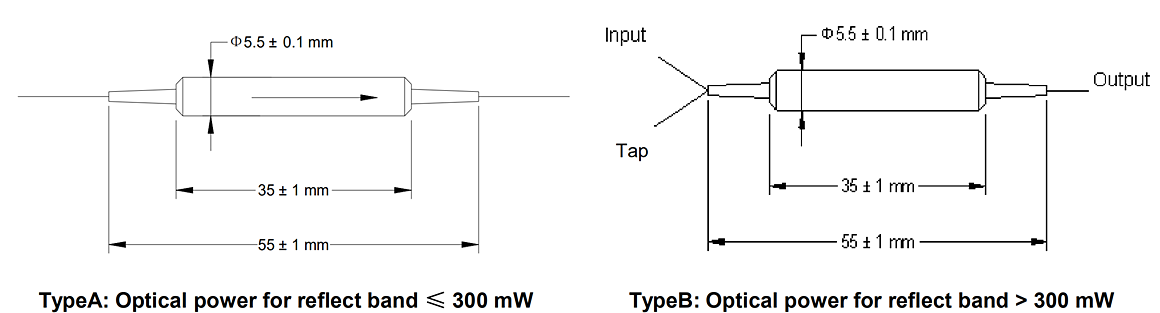

封装及尺寸
产品应用
● 光纤放大器
● WDM & DWDM 系统
● 光纤设备
● 光纤激光器

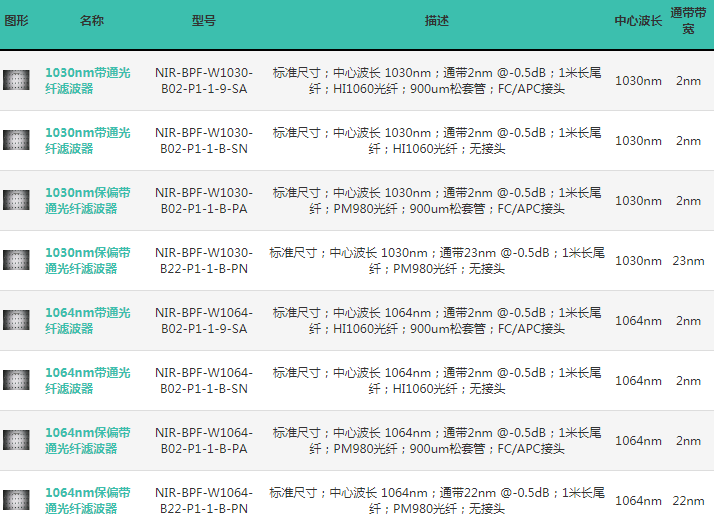

订购信息
NIR-BPF- W□□□□-B○-P▽-☆-△-XX
W□□□□: Wavelength
1064: 1064nm
1050: 1050nm
*****
1030: 1030nm
1580: 1580nm
B○: -0.5dB带通宽度
2: 2nm
5: 5nm
8: 8nm
14: 14nm
22: 22nm
P▽: Package
1: With Out Tap
2：With Tap
☆ ：Pigtail Length
05: 0.5m
1: 1m
10: 10m
△: Loose Tube
B: Bare Fiber
9: 900um Loose Tube
20: 2mm Loose Tube
30: 2mm Loose Tube
XX: Fiber and Connector Type
SA=Hi1060+ FC/APC
SP=HI1060+ FC/PC
PA=PM 980Fiber+ FC/APC
PP=PM980 Fiber+ FC/PC
PN= PM Fiber+ none
