本产品可连接光源、万向节臂、直杆、以及任何螺纹尺寸为¼-20的标准附件。特别适用于视频以及检测系统结构。

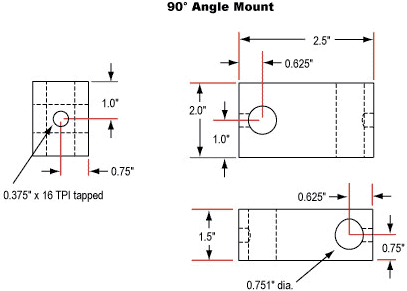

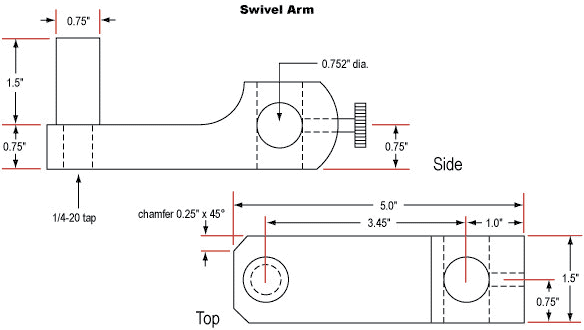

90° Angle Mount #39-355 features two ¾" thru holes at 90° with locking knobs. All Ring Mounts feature ¼-20 mounting hole, set screw for securing post, or optical component within the inner diameter. Swivel Arm #03-684 features a 0.75" diameter post which accepts rack and pinion focusing mount and allows swivel movement. Infinity Mounting Adapter #39-358 features male and female T-thread to replace 24mm tube section of infinity lens.
| Stock No. | A | T | O.D. | I.D. |
| #54-263 | 0.375" | 0.5" | 2.5" | 1.5" |
| #54-264 | 0.375" | 0.5" | 1.75" | 0.75" |
| #54-265 | 0.271" | 0.375" | 1.25" | 0.5" |
| ||||
