爱特蒙特光学可为您提供由三菱公司生产制造的塑料光纤。这种光纤有两种级别，这两种级别的光纤都有着超强的光学特性，提高了透射率。本光纤中心材料为PMMA（聚甲基丙烯酸甲酯，也即有机玻璃），包层采用一层薄薄的的氟聚合体，其折射率较内芯低。

光学级光纤与光导：本光纤在可见光波段有着很高的折射率，用途广泛，从一般的工业光导到短距离数据传输。不过本品不可用于载荷重物。

注意： 价格表上所列的价格为每英尺的价格—最小起订量为10英尺。Eska® 光纤只用于商业用途。

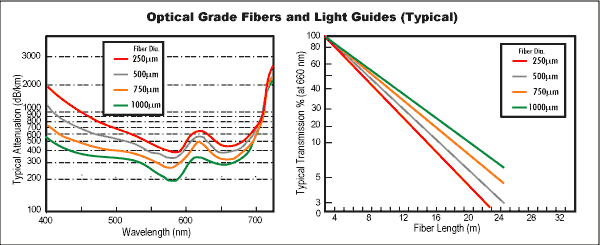

Optical Grade Fibers and Light Guides: These fibers were designed to provide higher transmission in the visible region of the spectrum. They can be used for a wide range of applications, from general industrial light guides to short distance data transmission. The fiber is tough and flexible, but is not designed to bear loads.

Note: Price listed is per foot - minimum order is 10 feet per stock number. 3mm Fiber is lower grade Eska® fiber for commercial applications only.

通用规格

基底:

Acrylic

工作温度 (°C):

-55 to +70

长度 (ft):

Cut to Order, Minimum 10

折射率nd - 包层 :

1.402

衰变 (dB/km) :

150 - 300 (@ 650nm)

数值孔径公差:

±0.03

Diameter Tolerance (%):

±6
