详细参数

型号
C14234-11
测量角度范围−90° to 90° (the vertical direction of sample is 0°)
激发光波长365 nm
发射波长350 nm to 950 nm
角度分辨率Approx. 3.5°
样本尺寸□30 mm (in case use R20 mm lens)
激发光角度范围−90° to 90° (the vertical direction of sample is 0°)
激发光源Fiber output LED 365 nm
激发光光斑尺寸< Φ 1 mm (in case use 365 nm LED)
激发光能量最大值Approx. 1.5 mW (in case use 365 nm LED and Φ365 μm fiber)
输入电源AC100 V to AC240 V, 50 Hz/60 Hz
能量消耗Approx. 115 VA (without data analizer)
环境储存温度−10 ˚C to +50 ˚C
环境工作温度+10 ˚C to +30 ˚C
环境工作湿度less than 70 % (with no condensation)

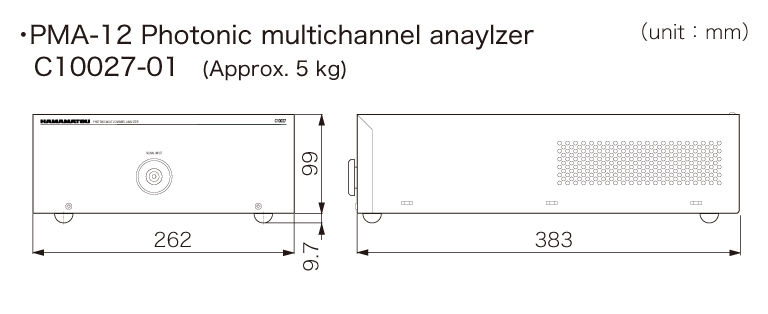

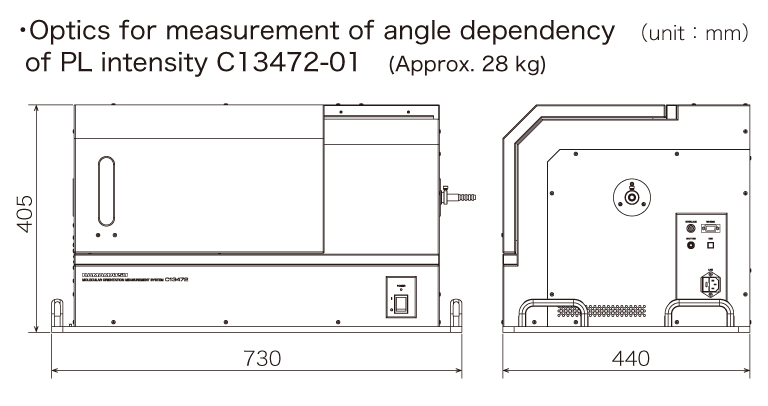

外形尺寸(单位:mm)
