Starprobe 光纤供电智能场强探头

型号：FL7030/FL7006/PL7004/FL7040 名称：Starprobe 光纤供电智能场强探头

查看原图

产品附图： (1/5)

收藏

型 号：FL7030/FL7006/PL7004/FL7040名 称：Starprobe 光纤供电智能场强探头产品简介：光纤供电智能场强探头，频率范围覆盖5kHz~40GHz。每个Starprobe探头中都内置微处理芯片，使其能实现最优线性度选择、温度补偿、远程控制和通讯等功能。另外，由于采用了光纤供电，在使用中无需担心因电池电量不足引起的测量误差，或因电池电量耗尽而被迫中断试验。Starprobe体积小巧，外部采用高强度绝缘材料，确保了良好的可靠性和耐用性。

详细信息：

        Starprobe 1  光纤供电智能场强探头：FL7030  5 kHz~30 MHz / 1.5~300 V/m

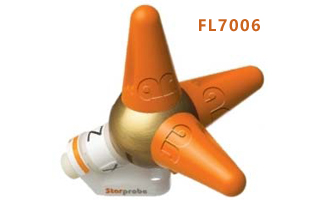

        Starprobe 2  光纤供电智能场强探头：FL7006  100 kHz~6 GHz / 0.5~800 V/m
        Starprobe 3  光纤供电智能场强探头：FL7040  2 MHz~40 GHz / 2~1000 V/m
        Starprobe 4  光纤供电智能场强探头：PL7004  800 MHz~3.6 GHz / 80~800 V/m
        Starprobe 5  光纤供电智能场强探头：FL7060  2 MHz - 60 GHz, 2 - 1000 V/m

 技术参数


探头型号

Starprobe 1
FL7030

Starprobe 2
FL7006

Starprobe 3
FL7040

Starprobe 4
PL7004

探头类型

Electric (E) field

Electric (E) field

Electric (E) field

Electric (E) field

检波类型

CW

CW

CW

Pulse

精度

±1.0dB, 10MHz
0.8dB, 5kHz–30 MHz

±1.0dB, 0.1MHz
0.8dB, 100kHz –1GHz
1.4dB, 1GHz– 6GHz

±1.0dB, 10MHz
0.8dB, 2MHz –1GHz
1.4dB, 1GHz– 40GHz

±1.5dB, 1GHz
0.8dB, 800MHz –1GHz
1.4dB, 1– 3.6GHz

各向同性偏差

±0.5dB, 10MHz
±0.5dB, 5kHz–30MHz typ.

±0.5dB, 10MHz
±0.5dB, 0.5MHz –2GHz typ.

±0.5dB, 10MHz
±1.5dB, 2MHz–40GHz typ.

±1dB at 1GHz (for improved accuracy this probe should be used with a single axis aligned with the e-field being measured)

相应时间/采样率（通过FI7000）

20msec/up to 50 samples per second at FI7000 USB and GPIB only

20msec/up to 50 samples per second at FI7000 USB and GPIB only

20msec/up to 50 samples per second at FI7000 USB and GPIB only

20msec/up to 50 samples per second at FI7000 USB and GPIB only

灵敏度

1.5–300 V/m

0.5–800V/m, 100kHz–1GHz
0.5–600V/m, 1–4GHz
0.7–800V/m, 4–6GHz

2–1000V/m

80–800V/m
Pulse width: 1 to 100 microseconds
Pulse period: up to 5 milliseconds between pulses
(greater than 200 Hz pulse rate)
Pulse duty: 0.02% to 2%
Pulse measurement variation (over range of pulse width, period,
and duty relative to a 10 microsecond pulse width and 1 millisecondpulse period, 1kHz pulse rate, 1% duty):
±0.5 dB/-1.0 dB (typ.)

线性度

(1.5–300 V/m) ±0.5dB and +0.9V/m

(0.5–800 V/m) ±0.5dB and ±0.3V/m

(2–1000 V/m) ±0.5dB

(0.5–800 V/m) ±0.5dB

温度稳定性

±0.5 dB over operating temperature range

±0.5 dB over operating temperature range

±0.5 dB over operating temperature range

±0.5 dB over operating temperature range

最大可承受场强

1000 V/m continuous field

1000 V/m continuous field

1200 V/m CW

1000 V/m continuous field

尺寸

5.7 x 5.7 x 5.7 cm

5.7 x 5.7 x 5.7 cm

27.8 x 6.5 x 6.5 cm

5.7 x 5.7 x 5.7 cm

重量

62.5 g

62.5 g

150 g

62.5 g

工作温度

10–40°C (50–104°F)
@ 5–95% RH non-condensing

10–40°C (50–104°F)
@ 5–95% RH non-condensing

10–40°C (50–104°F)
@ 5–95% RH non-condensing

10–40°C (50–104°F)
@ 5–95% RH non-condensing
