SA2 系列实心铝光学面包板提供了一个固体表面，具有一系列 1/4-20 或 M6 螺纹孔，用于安装您的组件。

• 安装面非常灵活，无需进行减振处理，适用于非关键应用

• 坚固的 12.7 mm 厚铝板结构

• 低反射率阳极氧化铝工作表面

• 1/4-20 或 M6 螺纹通孔

产品规格

注意：以下参数为全部产品共用。完整信息请点击单个产品查看。

• 厚度

  0.5 in. (12.7 mm)

• 安装孔

  1/4-20 (M6)

• 表面平面度

  ±0.062 in. (1.57 mm) over 2 ft. (600 mm) square

• 安装孔分布

  1 in. (25 mm) grid

• 安装孔类型

  Cut (not rolled) threads with countersink

• 安装孔边距

  0.5 in. (12.5 mm)

• 工作表面

  Low Reflective Anodized Aluminum

• 纤芯设计

  Sold Aluminum

• 重量

  34 kg/m2

特征

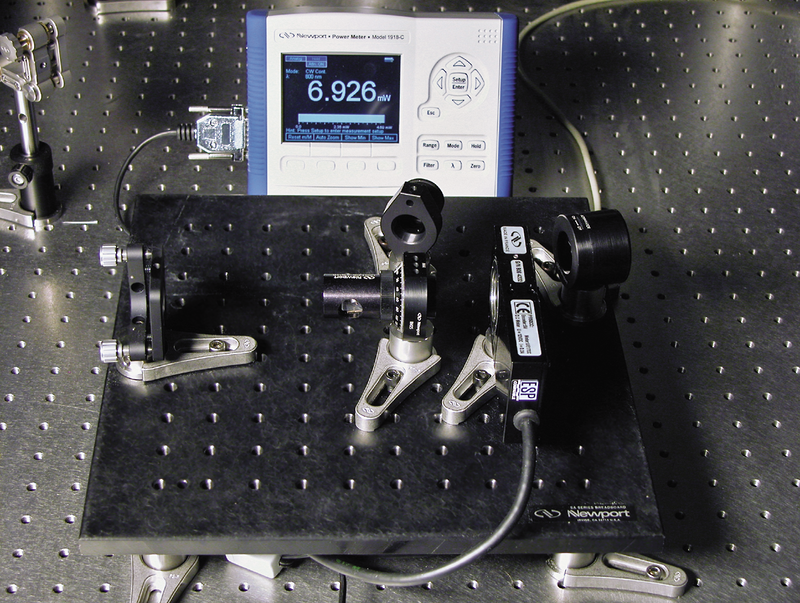

Convenient Platform for Optical Assemblies

These solid aluminum, nonmagnetic, optical breadboard plates provide a low cost, convenient platform for building optical assemblies, small optical experiments and optical subsystems.  Our wide variety of breadboard accessories make it easy to incorporate these breadboards into larger optical systes with ease.

Low Reflectance Working Surface

These solid aluminum optical breadboards have a matt black anodized surface that reduces unwanted reflections compared to honeycomb breadboards that use a stainless steel working surface.

易于安装的沉头通孔

SA2 实心铝光学面包板具有 4 个沉头通孔，便于改装现有平台以增加工作空间和便利性。

Double density solid aluminum breadboard shown

双密度选项可用

目前，Newport 在 双密度 孔型中提供 SA2 面包板，适用于要求安装孔彼此靠近的紧凑型应用。以下是标准型号，同时我们也很乐意为您量身定制尺寸。

LaserCleanTM 选项可用。

LaserClean 版本中提供 SA2 实心铝光学面包板，以最大限度地减少真空相关实验的脱气。

Optical Breadboard Handles

SA2-HNDL breadboard handles are ideal for lifting and handling SA2 optical breadboards. Made in Italy with reinforced glass fiber, these handles are robust, light weight and resistant to oil, solvents and other chemical agents.

90 Degree Breadboard Mounting

Our SA2 optical breadboards can be mounted vertically using our 90 degree breadboard angle brackets.  They are offered in three sizes (SA2-BRKT-18 shown) See accessory table for details.

Kinematic Breadboard Adapters

These kinematic adaptors allow you to remove and replace SA2 breadboards while preserving the final alignment.  They mount directly to SA2 series breadboards either on the top side or bottom side of the breadboard. Top-side mounting provides the lowest surface height but leaves less mounting area on the breadboard.

Vibration Isolating Mounting Feet

Sorbothane vibration isolation mounting feet are ideal for isolating a small SA2 breadboard from a standard workbench.  The mounts are sold individually and supplied with a 1/4-20 or M6 thread for easy mounting. They are offered in 50 or 70 durometer. For heavier loads simply add more mounts. For optimum isolation use the mounts at as close to the maximum load as possible.
