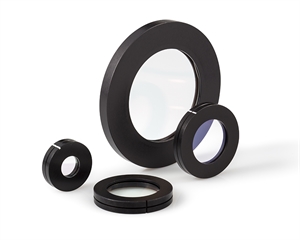

QWPO:零级石英波片
高能量、高性能λ/2 或 λ/4聚合物延迟器，具有宽的带宽、热稳定性好的特点，波长193 – 1550 nm，这种聚合物波片设计在很宽的带宽上提供精确的λ/2 或 λ/4延迟量，并具有很好的温度稳定性。紫外到近红外波长的高功率应用有货，波长、延迟量和尺寸可定制。
参数:
产品代码: | QWPO |
光学材料: | Crystal Quartz |
表面质量: | 10-5 scratch and dig |
透射波前: | λ/10 p-v at 633 nm |
延迟公差: | λ/200 to λ/500 at 23°C |
平行度: | ≤ 5 arc sec |
直径: | Ø +0/−0.25 mm (unmounted)，Ring Mount OD ±0.127 mm |
可选安装座: | 光学接触，在环形支架中接触，或在环形支架中空气间隔 |
通光孔径: | ≥ 85% of diameter for the unmounted waveplate |
增透膜: | R ≤ 0.25% per surface |
损伤阈值: | 10 J/cm2, 20 nsec, 20 Hz;1 MW/cm2 cw @ 1064 nm |
λ/2
产品型号 | λ (nm) | Ø (mm) | 延迟量 | 安装外径 (mm) |
QWPO-1030-05-2 See Specs & Drawings | 1030 | 12.7 | λ/2 | - |
QWPO-1030-08-2-AS10 See Specs & Drawings | 1030 | 20 | λ/2 | 25.4 |
QWPO-1030-08-2-R10 See Specs & Drawings | 1030 | 20 | λ/2 | 25.4 |
QWPO-1030-08-4-AS10 See Specs & Drawings | 1030 | 20 | λ/4 | 25.4 |
QWPO-1030-10-2 See Specs & Drawings | 1030 | 25.4 | λ/2 | - |
QWPO-1030-10-4 See Specs & Drawings | 1030 | 25.4 | λ/4 | - |
QWPO-1030-20-2 See Specs & Drawings | 1030 | 50.8 | λ/2 | - |
QWPO-1030-20-4-R30 See Specs & Drawings | 1030 | 50.8 | λ/4 | 76.2 |
QWPO-1047-05-2-R10 See Specs & Drawings | 1047 | 12.7 | 25.4 | |
QWPO-1053-05-2 See Specs & Drawings | 1053 | 12.7 | λ/2 | - |
QWPO-1053-10-2 See Specs & Drawings | 1053 | 25.4 | λ/2 | - |
QWPO-1053-10-4 See Specs & Drawings | 1053 | 25.4 | λ/4 | - |
QWPO-1053-15-4-R20 See Specs & Drawings | 1053 | 38.1 | λ/4 | 50.8 |
QWPO-1053-20-2 See Specs & Drawings | 1053 | 50.8 | λ/2 | - |
QWPO-1064-05-2 See Specs & Drawings | 1064 | 12.7 | λ/2 | - |
QWPO-1064-05-2-AS10 See Specs & Drawings | 1064 | 12.7 | λ/2 | 25.4 |
QWPO-1064-05-2-R10 See Specs & Drawings | 1064 | 12.7 | λ/2 | 25.4 |
QWPO-1064-05-4 See Specs & Drawings | 1064 | 12.7 | λ/4 | - |
QWPO-1064-05-4-R10 See Specs & Drawings | 1064 | 12.7 | λ/4 | 25.4 |
QWPO-1064-08-2 See Specs & Drawings | 1064 | 20 | λ/2 | - |
QWPO-1064-08-2-AS10 See Specs & Drawings | 1064 | 20 | λ/2 | 25.4 |
QWPO-1064-08-4 See Specs & Drawings | 1064 | 20 | λ/4 | - |
QWPO-1064-08-4-AS10 See Specs & Drawings | 1064 | 20 | λ/4 | 25.4 |
QWPO-1064-10-2 See Specs & Drawings | 1064 | 25.4 | λ/2 | - |
QWPO-1064-10-2-AS15 See Specs & Drawings | 1064 | 25.4 | λ/2 | 38.1 |
QWPO-1064-10-2-R15 See Specs & Drawings | 1064 | 25.4 | λ/2 | 38.1 |
QWPO-1064-10-4 See Specs & Drawings | 1064 | 25.4 | λ/4 | - |
QWPO-1064-10-4-R15 See Specs & Drawings | 1064 | 25.4 | λ/4 | 38.1 |
QWPO-1064-15-4-R20 See Specs & Drawings | 1064 | 38.1 | λ/4 | 50.8 |
QWPO-1064-20-2-R30 See Specs & Drawings | 1064 | 50.8 | λ/2 | 76.2 |
QWPO-1550-05-2 See Specs & Drawings | 1550 | 12.7 | λ/2 | - |
QWPO-1550-10-2 See Specs & Drawings | 1550 | 25.4 | λ/2 | - |
QWPO-1550-10-4 See Specs & Drawings | 1550 | 25.4 | λ/4 | - |
QWPO-1550-10-4-R15 See Specs & Drawings | 1550 | 25.4 | λ/4 | 38.1 |
QWPO-248-08-2 See Specs & Drawings | 248 | 20 | λ/2 | - |
QWPO-248-08-2-AS10 See Specs & Drawings | 248 | 20 | λ/2 | 25.4 |
QWPO-266-05-2 See Specs & Drawings | 266 | 12.7 | λ/2 | - |
QWPO-266-05-4-R10 See Specs & Drawings | 266 | 12.7 | λ/4 | 25.4 |
QWPO-266-10-2 See Specs & Drawings | 266 | 25.4 | λ/2 | - |
QWPO-266-10-4 See Specs & Drawings | 266 | 25.4 | λ/4 | - |
QWPO-266-10-4-R15 See Specs & Drawings | 266 | 25.4 | λ/4 | 38.1 |
QWPO-325-08-2-R10 See Specs & Drawings | 325 | 20 | λ/2 | 25.4 |
QWPO-325-08-4-R10 See Specs & Drawings | 325 | 20 | λ/4 | 25.4 |
QWPO-355-05-2 See Specs & Drawings | 355 | 12.7 | λ/2 | - |
QWPO-355-05-2-AS10 See Specs & Drawings | 355 | 12.7 | λ/2 | 25.4 |
QWPO-355-05-2-R10 See Specs & Drawings | 355 | 12.7 | λ/2 | 25.4 |
QWPO-355-05-4 See Specs & Drawings | 355 | 12.7 | λ/4 | - |
QWPO-355-05-4-AS10 See Specs & Drawings | 355 | 12.7 | λ/4 | 25.4 |
QWPO-355-08-2-AS10 See Specs & Drawings | 355 | 20 | λ/2 | 25.4 |
QWPO-355-08-4 See Specs & Drawings | 355 | 20 | λ/4 | - |
QWPO-355-08-4-AS10 See Specs & Drawings | 355 | 20 | λ/4 | 25.4 |
QWPO-355-10-2 See Specs & Drawings | 355 | 25.4 | λ/2 | - |
QWPO-355-10-4 See Specs & Drawings | 355 | 25.4 | λ/4 | - |
QWPO-355-10-4-R15 See Specs & Drawings | 355 | 25.4 | λ/4 | 38.1 |
QWPO-355-12-2-R15 See Specs & Drawings | 355 | 30 | λ/2 | 38.1 |
QWPO-400-05-2 See Specs & Drawings | 400 | 12.7 | λ/2 | - |
QWPO-400-05-2-AS10 See Specs & Drawings | 400 | 12.7 | λ/2 | 25.4 |
QWPO-400-05-2-R10 See Specs & Drawings | 400 | 12.7 | λ/2 | 25.4 |
QWPO-400-05-4 See Specs & Drawings | 400 | 12.7 | λ/4 | - |
QWPO-400-05-4-AS10 See Specs & Drawings | 400 | 12.7 | λ/4 | 25.4 |
QWPO-400-10-2 See Specs & Drawings | 400 | 25.4 | λ/2 | - |
QWPO-400-10-4-AS15 See Specs & Drawings | 400 | 25.4 | λ/4 | 38.1 |
QWPO-488-10-4 See Specs & Drawings | 488 | 25.4 | λ/4 | - |
QWPO-515-08-4-R10 See Specs & Drawings | 515 | 20 | λ/4 | 25.4 |
QWPO-532-05-2 See Specs & Drawings | 532 | 12.7 | λ/2 | - |
QWPO-532-05-2-AS10 See Specs & Drawings | 532 | 12.7 | λ/2 | 25.4 |
QWPO-532-05-2-R10 See Specs & Drawings | 532 | 12.7 | λ/2 | 25.4 |
QWPO-532-08-2 See Specs & Drawings | 532 | 20 | λ/2 | - |
QWPO-532-08-2-AS10 See Specs & Drawings | 532 | 20 | λ/2 | 25.4 |
QWPO-532-08-2-R10 See Specs & Drawings | 532 | 20 | λ/2 | 25.4 |
QWPO-532-08-4-AS10 See Specs & Drawings | 532 | 20 | λ/4 | 25.4 |
QWPO-532-10-2 See Specs & Drawings | 532 | 25.4 | λ/2 | - |
QWPO-532-10-4 See Specs & Drawings | 532 | 25.4 | λ/4 | - |
QWPO-532-10-4-AS15 See Specs & Drawings | 532 | 25.4 | λ/4 | 38.1 |
QWPO-532-12-2 See Specs & Drawings | 532 | 30 | λ/2 | - |
QWPO-532-12-2-AS15 See Specs & Drawings | 532 | 30 | λ/2 | 38.1 |
QWPO-532-12-4 See Specs & Drawings | 532 | 30 | λ/4 | - |
QWPO-532-12-4-AS15 See Specs & Drawings | 532 | 30 | λ/4 | 38.1 |
QWPO-532-12-4-R15 See Specs & Drawings | 532 | 30 | λ/4 | 38.1 |
QWPO-532-15-2-AS20 See Specs & Drawings | 532 | 38.1 | λ/2 | 50.8 |
QWPO-532-15-4-AS20 See Specs & Drawings | 532 | 38.1 | λ/4 | 50.8 |
QWPO-633-05-2 See Specs & Drawings | 633 | 12.7 | λ/2 | - |
QWPO-633-05-4-R10 See Specs & Drawings | 633 | 12.7 | λ/4 | 25.4 |
QWPO-633-08-2-R10 See Specs & Drawings | 633 | 20 | λ/2 | 25.4 |
QWPO-633-08-4 See Specs & Drawings | 633 | 20 | λ/4 | - |
QWPO-633-08-4-R10 See Specs & Drawings | 633 | 20 | λ/4 | 25.4 |
QWPO-633-10-2 See Specs & Drawings | 633 | 25.4 | λ/2 | - |
QWPO-633-10-4 See Specs & Drawings | 633 | 25.4 | λ/4 | - |
QWPO-780-05-2 See Specs & Drawings | 780 | 12.7 | λ/2 | - |
QWPO-780-05-2-R10 See Specs & Drawings | 780 | 12.7 | λ/2 | 25.4 |
QWPO-780-10-2 See Specs & Drawings | 780 | 25.4 | λ/2 | - |
QWPO-780-10-2-AS15 See Specs & Drawings | 780 | 25.4 | λ/2 | 38.1 |
QWPO-780-10-2-R15 See Specs & Drawings | 780 | 25.4 | λ/2 | 38.1 |
QWPO-780-10-4 See Specs & Drawings | 780 | 25.4 | λ/4 | - |
QWPO-780-10-4-AS15 See Specs & Drawings | 780 | 25.4 | λ/4 | 38.1 |
QWPO-780-20-4 See Specs & Drawings | 780 | 50.8 | λ/4 | - |
QWPO-800-05-2 See Specs & Drawings | 800 | 12.7 | λ/2 | - |
QWPO-800-05-2-AS10 See Specs & Drawings | 800 | 12.7 | λ/2 | 25.4 |
QWPO-800-05-2-R10 See Specs & Drawings | 800 | 12.7 | λ/2 | 25.4 |
QWPO-800-05-4 See Specs & Drawings | 800 | 12.7 | λ/4 | - |
QWPO-800-08-2-AS10 See Specs & Drawings | 800 | 20 | λ/2 | 25.4 |
QWPO-800-08-4-AS10 See Specs & Drawings | 800 | 20 | λ/4 | 25.4 |
QWPO-800-10-2 See Specs & Drawings | 800 | 25.4 | λ/2 | - |
QWPO-800-10-2-R15 See Specs & Drawings | 800 | 25.4 | λ/2 | 38.1 |
QWPO-800-10-4 See Specs & Drawings | 800 | 25.4 | λ/4 | - |
QWPO-800-10-4-AS15 See Specs & Drawings | 800 | 25.4 | λ/4 | 38.1 |
QWPO-800-10-4-R15 See Specs & Drawings | 800 | 25.4 | λ/4 | 38.1 |
QWPO-850-10-4 See Specs & Drawings | 850 | 25.4 | λ/4 | - |
QWPO-940-10-2 See Specs & Drawings | 940 | 25.4 | λ/2 | - |
QWPO-244-05-2-AS10 See Specs & Drawings | 244 | 12.7 | λ/2 | 25.4 |
