The SLM-1A Compact Air Mount without Self Leveling offers excellent support for high shock or applications requiring lower levels of vibration isolation. This mount supports 100 lb maximum loads and has an 60 psi air pressure maximum. It can be used to isolate machinery from floor vibrations or the floor from machinery vibrations. The rigid wall design is far superior to conventional air bladders. SLM mounts also offer excellent protection against high static deflection, drift and permanent set. Once filled with air they are virtually maintenance free.

• 单个隔离器负载

  45 kg

• 最大空气压力

  60 psi

• 重量

  0.45 kg

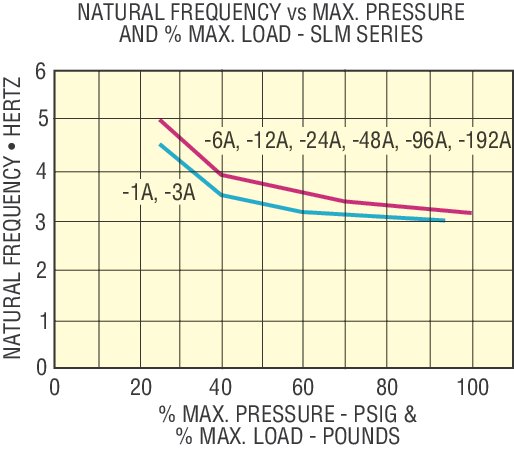

• 固有频率（标称），最大值

  5 Hz

• 固有频率（标称），最小值

  3 Hz

SLM-1A紧凑空气挂架没有自调平，为高冲击或需要较低隔振级别的应用程序提供了出色的支持。该安装支持100磅最大负荷和60磅最大气压。它可以用来隔离机器从地板振动或地板从机械振动。硬壁设计远优于传统的气囊。SLM安装也提供了良好的保护，防止高静态挠度，漂移和永久设置。一旦充满空气，他们实际上是免费维护。
