The 2151 Femtowatt Silicon Photoreceiver is ideal when you need the ultimate in low-light-level detection in the 300 to 1050 nm range. When used with a chopper and a lock-in amplifier, these receivers can easily achieve sensitivity levels in the femtowatt range. These receivers provide amazing amounts of gain and yet are easy to use, making the most difficult spectroscopy or fluorescence experiment a snap. 8-32 mounting thread. M4 metric adaptor and tool now included.

• 探测器直径

  1.0 mm

• 带宽 (-3 dB)

  DC-750 Hz (DC), 30-750 Hz (AC)

• 波长范围

  320-1050 nm

• 光输入

  10 mW

• 输出接头

  Male BNC

• 输出阻抗

  100 &Omega

• 探测器材料

  Si

• 探测器类型

  PIN

• 最大转换增益

  1x1011 V/W

• 最大跨阻抗增益

  2x1010 & 2x1011 V/A

• NEP

  16 fW / √Hz

• 电源要求

  Internal 9-V battery

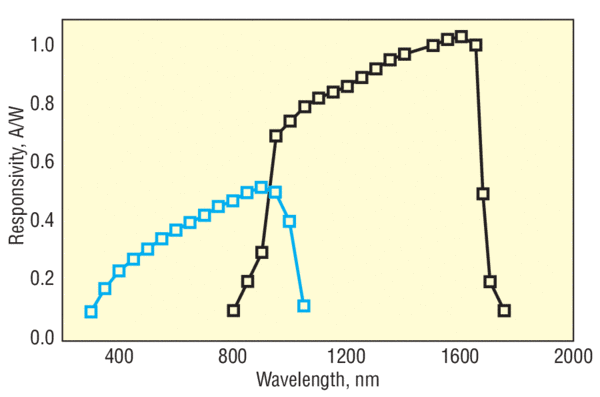

• 峰值响应度

  0.5 A/W

• 电流

  0.5 nW

当你需要在300到1050纳米范围内进行微光检测时，2151飞瓦硅光电接收器是理想的。当与斩波器和锁定放大器一起使用时，这些接收器可以很容易地达到飞瓦特范围内的灵敏度水平。这些接收器提供了惊人的增益，但易于使用，使最困难的光谱或荧光实验瞬间。8-32越来越多的线程。现在包括M4公制适配器和工具。
