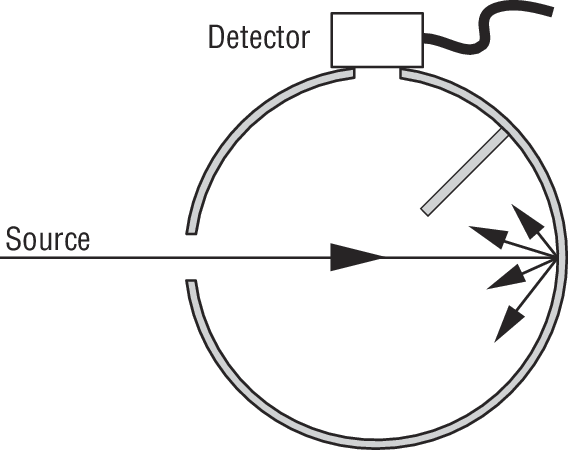

The 819C-SF-6 Integrating Sphere is a 6 inch, Spectraflect coated, 4-port integrating sphere. Its damage threshold is 1.7 J/cm2.  The port at 90° is used for the user selectable detector. The port at 180° is for the incoming collimated beam. The port at the North Pole location (top) is for fiber optic taping to monitor wavelength. All spheres include a baffle between the 90° and 0° ports, which prevents direct illumination from the light source to the detector port. By adding Newport's 819 Series port adapters and accessories, numerous integrating sphere configurations can be obtained.  Shipped with a 2.5 inch port plug premounted at the 0° port, which can be easily removed for various setup requirements.

• 探测器类型

  Integrating Sphere

• 光谱范围

  300 nm to 2.4 µm

• 材料

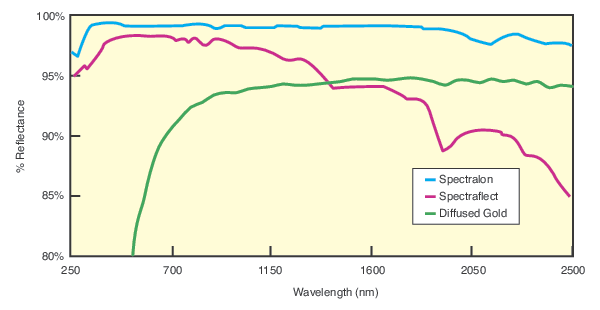

  Spectrflect

• 球体尺寸

  6 in.

• 输入端口尺寸

  2.5 in (0 degree port), 1.0 in (90, 180, and north port)

• 热极限

  100°C

819C-SF-6集成球体是一个6英寸的，光谱涂层，4端口集成球体。其损伤阈值为1.7 J/cm2。港在90°用于用户选择探测器。港在180°的平行光束。在北极位置(顶部)的端口是用于光纤磁带监测波长。所有领域包括90°和0°港口之间的挡板,防止直接照明从光源到检测器端口。通过添加Newport的819系列端口适配器和附件，可以获得大量的集成球体配置。附带一个2.5英寸的港口塞在0°premounted端口,可以很容易地删除各种设置的要求。
