The 818-SL-L-FC/DB is a flexible fiber optic detector that can easily be converted to a free space detector simply by removing the 884-FC fiber optic adapter installed on it. It is compatible with all the current Newport optical power meter models that have a DB15 interface. Please note that models 818-SL-L and 818-SL-L/DB are no longer available for purchase. Purchase 818-SL-L-FC/DB and remove the connector and/or the fiber adapter.
探测器类型
Fiber Optic
感光尺寸
Ø11.3 mm

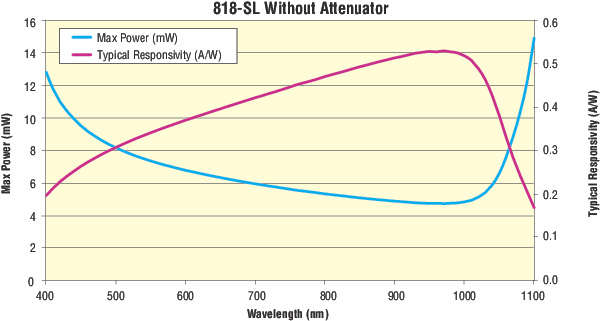

光谱范围
400 - 1100 nm
最大可测量功率
4 mW with 1830-R and 1936-R, 2.5 mW with 843-R, 1919-R, and 841-PE-USB
校准不确定度(无衰减器)
1% @ 400-920nm
4% @ 921-1100 nm
线性度
±0.5 %
均匀性
±2 %
材料
Silicon
上升时间
≤2 µs
端口类型
DB15
RoHS
Not compliant
最小可检测功率
20 pW with 1936-R/2936-R, 100 pW with 1830-R, 5 nW with 1918-R, 100 pW with 843-R
电缆长度
1.5 m
818-SL-L-FC/DB是一种柔性光纤探测器,只要去掉安装在其上的884-FC光纤适配器,就可以轻松地转换为自由空间探测器。它与目前所有拥有DB15接口的新港光功率表模型兼容。请注意型号818-SL-L和818-SL-L/DB不再可供购买。购买818 sl - l - fc /DB并拆卸连接器和/或光纤适配器。
