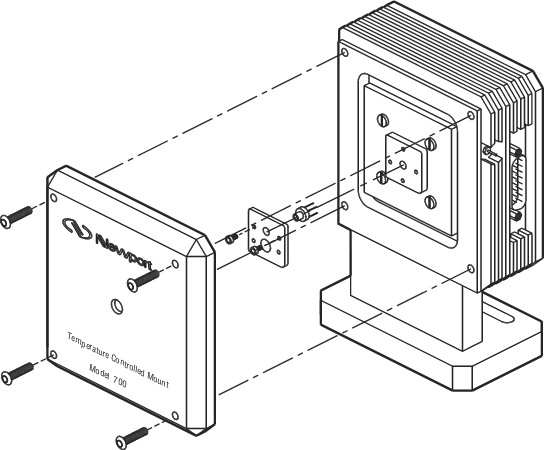

The 700P Fiber Pigtailed TO-can Diode Mount provides a versatile, temperature controlled, mounting solution for fiber pigtailed TO-9 and TO-56 laser diodes. Optimum temperature control is achieved with two built-in 12.5 W Peltier thermoelectric coolers (TEC), and an optional water-cooled back plate, which increases low-end temperature capability. To increase system flexibility, the mounts incorporate nitrogen purge fitting, pre-drilled holes for mounting your circuitry, a BNC modulation port, and both thermistor and AD592CN temperature sensors.

• 包装类型

  3-pin & 4-pin TO-Can

• 温度传感器

  10 kΩ thermistor and AD592CN

• 端口类型

  Male 9-Pin DSUB (Diode) / Male 15-pin DSUB (TEC)

• 散热性能

  12 W

• 重量

  1.4 kg

700P光纤扎尾对罐二极管安装提供了一个通用的，温度控制的，安装解决方案，光纤扎尾对9和对56激光二极管。最佳的温度控制是通过两个内置的12.5瓦Peltier热电冷却器(TEC)和一个可选的水冷后板来实现的，后者提高了低端的温度能力。为了增加系统的灵活性，安装包括氮气吹扫配件，安装电路的预钻孔，BNC调制端口，热敏电阻和AD592CN温度传感器。
