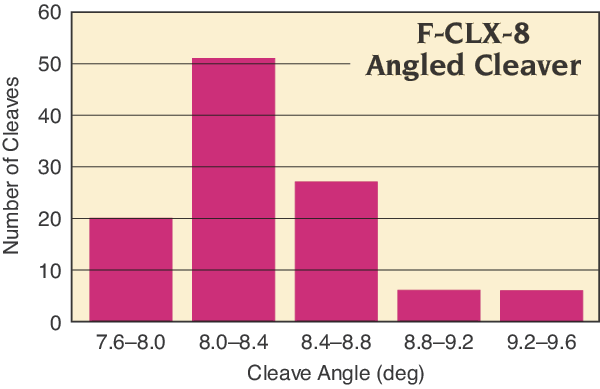

The F-CLX-8-3 Manual Fiber Cleaver is simple to operate and produces very high quality cleaves. Once the fiber is placed in the V-groove, the patented mechanism clamps, tenses, scribes and cleaves the fiber with a simple downward push of the top lever. The F-CLX-8-3 angled optical fiber cleaver provides a typical end angle of 8.4 ° and has an excellent cleave repeatability. A minimum cleave length of only 3 mm is possible. Other features include a long-life blade angled to reduce stresses during cleaving and providing up to 20,000 cleaves and a scale for gauging cleave lengths.

• 类型

  Fiber Cleaver

• 切割角度

  8º average; 0.35° standard deviation

• 包层直径

  125 µm

• 尺寸

  72 x 72 x 110 mm

F-CLX-8-3手动切纤维刀操作简单，生产出高质量的切纤维。一旦纤维被放置在v型槽中，专利的机制夹紧，紧张，抄写和切割纤维简单向下推动顶部杠杆。F-CLX-8-3角度的光学光纤切割机提供了一个典型的端角8.4°,一个优秀的分裂可重复性。最小劈裂长度只有3毫米是可能的。其他特点包括一个长寿命叶片角度，以减少应力分裂期间，并提供多达2万个分裂和一个规模衡量分裂长度。
