Newport’s Tunable Bandpass Fiber Optic Filter is used to adjust the center wavelength of a narrow passband within a 30 nm range around 1550 nm.
A 0.8 nm tunable filter model is offered, having a 1535–1565 nm tuning range. The filter features high isolation, low insertion loss, low back-reflection and low polarization sensitivity.
A thin film coating interference filter, located between two angled fiber optic collimators, is used to select the wavelength of interest, by adjusting the tilt angle of the filter with a high-precision micrometer having 0.05 nm resolution.
Applications for Newport’s Tunable Bandpass Filter include: sideband noise suppression in erbium-doped fiber amplifiers (EDFA) and in tunable laser transmission systems; as well as wavelength selection for test and measurement applications.

• 类型

  Tunable Bandpass Filter

• 光纤类型

  Singlemode

• 光纤接头

  Bare Fiber

• 工作波长

  1535 to 1565 nm

• 最大插入损耗

  3.0 dB

• 典型插入损耗

  1.5 dB

• 工作温度

  15 to 65°C

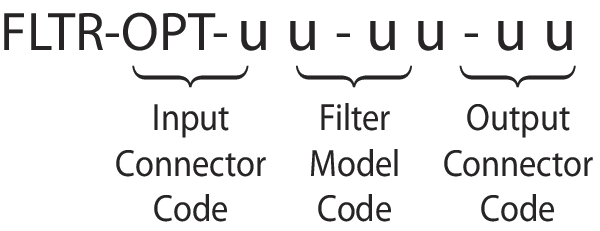

• 选件代码

  15

• 工作湿度

  35 nm

• 最大背向反射

  -50 dB

• 偏振相关损耗，典型值

  0.05 dB, typical @ 1565 nm; 0.3 dB @ 1535 nm

新港的可调谐带通光纤滤波器用于在1550nm左右的30nm范围内调节窄通带的中心波长。

提供了一个0.8 nm可调谐滤波器模型，具有1535-1565 nm调谐范围。该滤波器具有高隔离、低插入损耗、低反反射和低极化灵敏度等特点。

利用位于两角度光纤准直器之间的薄膜涂层干涉滤光片，以0.05 nm分辨率的高精度测微计调整滤光片的倾角，选择感兴趣的波长。

新港的可调谐带通滤波器的应用包括:在掺铒光纤放大器(EDFA)和可调谐激光传输系统中的边带噪声抑制;以及用于测试和测量的波长选择。
