The F-CPL-M14850 Multimode Fiber Optic Coupler allows bi-directional coupling and can be used to either split or combine signals. It uses 62.5/125 μm fiber, with low 3.9 dB insertion loss and a 850 nm operating wavelength. This 1x4 coupler features a fully ruggedized black plastic housing with 1 meter long, 3 mm PVC covered pigtails, unterminated. Use Option Code 94 when ordering with connectors. Option Code 94 refers to the Coupler Model Code.

• 类型

  1x4 Multimode Coupler

• 光纤类型

  Multimode

• 光纤接头

  Bare Fiber

• 工作波长

  850 nm

• 典型插入损耗

  7.5 dB

• 工作温度

  -40 to 85°C

• 选件代码

  94

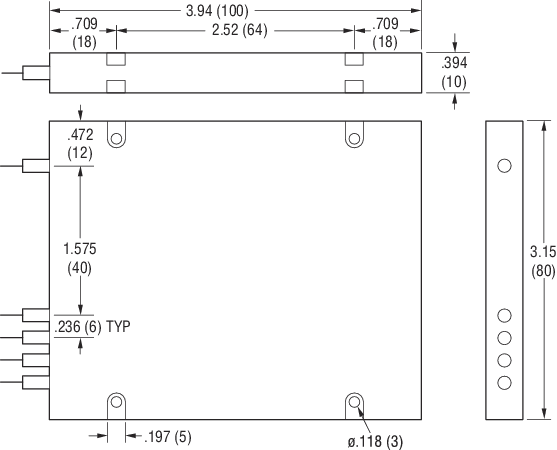

• 包装类型

  C

• 工作湿度

  90–95%

• 均匀性

  0.7 dB

f - cp - m14850多模光纤耦合器允许双向耦合，可用于分离或组合信号。它使用62.5/125μm纤维,低3.9 dB的插入损耗和波长850 nm的操作。这1x4耦合器的特点是一个完全加固的黑色塑料外壳与1米长，3毫米PVC覆盖辫子，未终止。使用连接器排序时使用选项代码94。选项代码94引用耦合器模型代码。
