The 10RP52-2B Achromatic Quartz-MgF2 Zero-Order Wave Plate consists of two different birefringent crystals: crystalline quartz and magnesium fluoride (MgF2). Enclosed in a 1 inch (25.4 mm) housing this 18 mm aperture zero-order wave plate has λ/2 retardation over a 700 to 1000 nm wavelength range. It has a highly efficient broadband antireflection coating, in an air-spaced design. This construction ensures excellent transmitted wavefront quality, while minimizing beam deviation and surface reflection losses. The assembly is mounted in a black anodized aluminum housing for protection and ease of mounting, with the retarder fast axis marked for alignment reference. Because of the air-space design, our Achromatic Quartz-MgF2 Wave Plates have a higher damage threshold than achromatic polymer film wave plates. Achromatic Quartz-MgF2 Wave Plates are also less expensive than achromatic polymer film wave plates.

• 直径

  25.4 mm

• 波长范围

  700-1000 nm

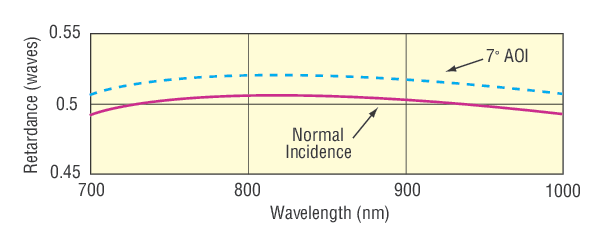

• 延迟

  λ/2

• 材料

  Crystal Quartz and MgF2

• 通光孔径

  18 mm

• 灯箱

  Black anodized aluminum

• 损伤阈值

  5 J/cm2 with 10 nsec pulses at 1064 nm, typical

• 增透膜

  Broadband, multilayer coating, Ravg <0.5%

• 表面质量

  40-20 scratch-dig

• 表面平面度

  λ/2

• 构造

  Two plates, air spaced

• 直径公差

  ±0.13 mm

• 透射光束偏移

  ≤1 arc min

• 厚度

  9.4 mm

• 波前畸变

  ≤λ/8 at 632.8 nm over the clear aperture

• 工作温度范围

  -20 to 50°C

• 清洁

  See How to Clean Optics

• 延迟精度

  From ±λ/50 to ±λ/100

10RP52-2B消色差石英-MgF2零阶波板由晶体石英和氟化镁(MgF2)两种不同的双折射晶体组成。包含在1英寸(25.4毫米)的房地产这18毫米孔径零级波片λ/ 2阻滞在700到1000纳米波长范围。它有一个高效的宽带防反射涂层，在空气间隔设计。这种结构保证了优良的传输波前质量，同时最小化了光束偏差和表面反射损失。为了保护和便于安装，总成安装在黑色阳极氧化铝外壳中，减速机快轴标记为校准参考。由于空气空间的设计，我们的消色差石英- mgf2波片比消色差聚合物膜波片具有更高的损伤阈值。无色石英- mgf2波片也比无色聚合物膜波片便宜。
