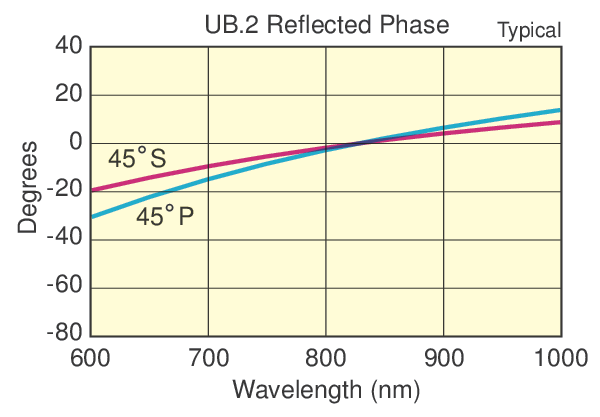

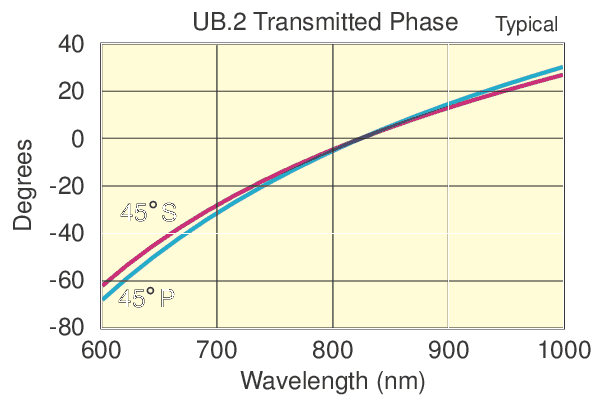

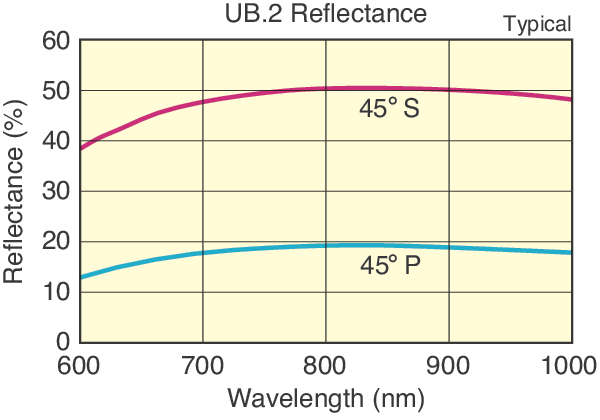

The 10RQ00UB.2 low GVD 50/50 Beamsplitter for Ultrashort Pulses is specially designed to manage the femtosecond pulse to minimize the pulse dispersion and wavefront distortion of reflected and transmitted light. The beam splitter is for S-polarized light and is coated with UB.2 providing a 50-50 split at 45° angle of incidence from 700–950 nm. The back surface has an antireflection coating to minimize surface reflection losses and eliminate ghost images. A thin UV grade fused silica substrate, with λ/10 wavefront distortion, is used to reduce pulse dispersion from the substrate material. This 25.4 mm diameter beamsplitter is designed to minimize pulse dispersion and maximize bandwidth for beam sampling and autocorrelation measurements of ultrafast laser pulses.

• 直径

  25.4 mm

• 增透膜

  700-950 nm

• 材料

  UV Grade Fused Silica

• 表面质量

  40-20 scratch-dig

• 入射角

  45°

• 镀膜代码

  UB.2

• 后表面镀膜

  660-1000 nm (NC.2)Multilayer Antireflection

• 表面平面度

  λ/10 at 632.8 nm over the clear aperture

• 倒角

  0.5 mm face width

• 倒角公差

  45±15°

• 清洁

  See How to Clean Optics

• 通光孔径

  > central 80% of diameter

• 楔形

  1 arc min

• 方向

  Beam should enter surface marked with an arrow

• 厚度

  3.0 mm

• 厚度公差

  ±0.25 mm

10 rq00ub。超短脉冲的低GVD 50/50波束分离器是专门设计用来管理飞秒脉冲的，以最小化反射和透射光的脉冲色散和波前畸变。分束器是S-polarized光和涂上UB.2提供45°角的平分秋色的发病率在700 - 950海里。背面有一层防反射涂层，以减少表面反射损失和消除鬼影。薄紫外线等级石英衬底,λ/ 10波前畸变,是用来减少脉冲色散的衬底材料。这种直径25.4 mm的分束器用于最小化脉冲色散和最大带宽，用于超快激光脉冲的光束采样和自相关测量。
