The 10Q40BS.3 Broadband Dielectric Beamsplitter is made of fused silica, 25.4 mm in diameter, 6.1 mm thick, with a surface flatness of λ/20, and coated for 1290-1580 nm. Our broadband dielectric beamsplitters are designed to provide general purpose laser beam splitting and combining for visible through near infrared applications. Each coating is essentially achromatic across a wide spectral band so that a single optic will work for the entire range of a particular tunable laser, for several laser diode wavelengths, or for most visible laser wavelengths.

• 直径

  25.4 mm

• 增透膜

  1290-1580 nm

• 材料

  UV Grade Fused Silica

• 表面质量

  10-2 scratch-dig

• 入射角

  45°

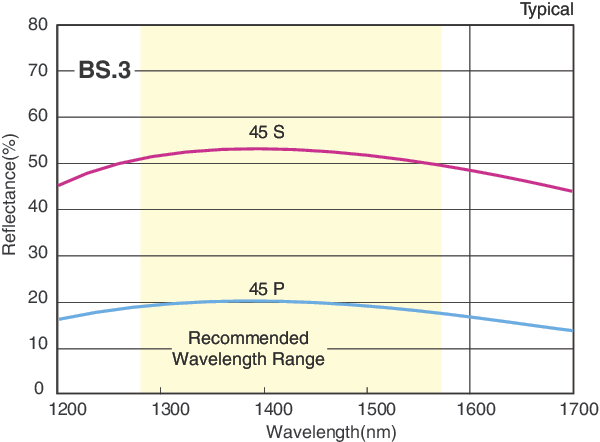

• 镀膜代码

  BS.3

• 表面平面度

  λ/20 at 632.8 nm over the clear aperture

• 耐用性

  MIL-C-675C, moderate abrasion million cycles

• 倒角

  0.25-0.76 mm face width

• 倒角公差

  45° ±15°

• 清洁

  See How to Clean Optics

• 通光孔径

  > central 80% of diameter

• 损伤阈值

  500 W/cm2 CW, 0.5 J/cm2 with 10 nsec pulses, typical

• 直径公差

  +0/-0.13 mm

• 楔形

  30 ±15 arc min

• 效率

  Ravg < 0.75% @ 1010-1550 nm

• 厚度

  6.1 mm

• 厚度公差

  ±0.38 mm

10 q40bs。3宽带介电分光镜是由石英,直径25.4毫米,厚6.1毫米,表面平坦的λ/ 20,1290 - 1580 nm和涂层。我们的宽带介质分束器被设计为提供通用的激光分束和组合，通过近红外应用可见光。每个涂层在宽光谱波段上基本上是无色的，因此单个光学元件可以适用于特定可调谐激光器的整个范围，适用于多个激光二极管波长，或适用于大多数可见激光波长。
