The 05BC15PH.9 High-energy Polarizing Cube Beamsplitter provides efficient narrowband polarization for use with Nd:YAG lasers. Each polarizer consists of a pair of precision right-angle prisms optically contacted together. No cement is used. Optimized for 1064 nm, a damage threshold of 10 J/cm2 is achieved. This high-energy polarizing cube beamsplitter is 12.7 x 12.7 x 12.7 mm and can be conveniently mounted on Newport holders.

• 增透膜

  1064 nm

• 尺寸

  12.7 x 12.7 x 12.7 mm

• 材料

  Grade A N-BK7

• 镀膜代码

  PH.9

• 表面质量

  20-10 scratch-dig

• 耐用性

  MIL-C-675C, moderate abrasion million cycles

• 入射角

  0°±5°

• 通光孔径

  >80% of central dimension

• 损伤阈值

  10 J/cm2 with 10 nsec pulses

• 尺寸公差

  ±0.254 mm

• 形状

  Cube

• 效率

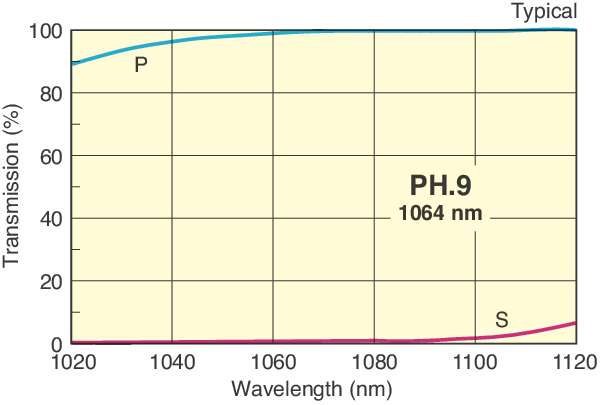

  Tp >95%, Rs>99.5%

• 清洁

  See How to Clean Optics

• 方向

  To avoid damage, beam should enter prism marked with a dot

• 反射光束偏转角度

  90° ±5 arc min

• 工作温度范围

  -50 to 90°C

• 透射

  Tp >95%

• 透射光束偏移

  ≤5 arc min

• 消光比

  Tp/Ts >200:1

• 波前畸变

  ≤ λ/4 at 632.8 nm over the clear aperture

05 bc15ph。高能偏振立方体波束分离器为Nd:YAG激光器提供了有效的窄带偏振。每个偏光器由一对光学接触的精密直角棱镜组成。不使用水泥。优化为1064 nm，损伤阈值为10j /cm2。这种高能偏振立方体波束分离器是12.7×12.7×12.7毫米，可以方便地安装在新港支架上。
