The 10FC16PB.7 Broadband Polarizing Cube Beamsplitter provides efficient polarization for use with multiple or tunable sources. The 25.4 mm cube polarizer consists of a pair of precision right-angle prisms carefully cemented together to minimize wavefront distortion. The hypotenuse of one of the prisms is coated with a multilayer dielectric polarizing beamsplitter coating optimized for a 900 to 1300 nm wavelength range. The four faces are antireflection coated with a multilayer dielectric coating to minimize surface reflection losses.

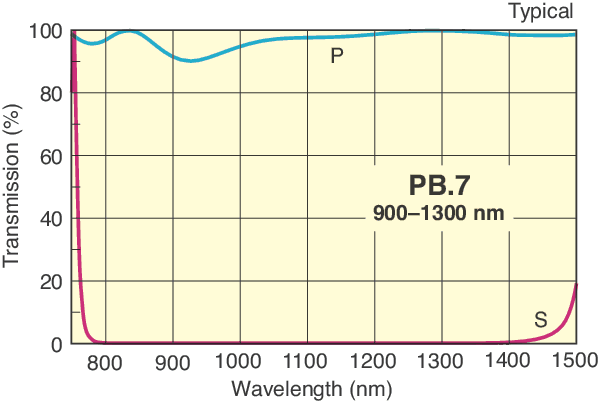

An unpolarized beam is split into two orthogonal, linearly polarized components. P-polarized light is transmitted, while s-polarized light is reflected, both with negligible absorption. The extinction ratio is better than 500:1, yet it averages 1000:1. This unique component provides all the benefits of a broadband polarizer in a standard cube configuration.

• 增透膜

  900-1300 nm

• 尺寸

  25.4 x 25.4 x 25.4 mm

• 材料

  SF 2, NSSK grade

• 镀膜代码

  PB.7

• 表面质量

  20-10 scratch-dig

• 表面平面度

  ≤λ/4 at 632.8 nm

• 耐用性

  MIL-C-675C, moderate abrasion million cycles

• 入射角

  0°±5°

• 通光孔径

  >80% of central dimension

• 损伤阈值

  2000 W/cm2 CW, 1 J/cm2 with a 10 nsec pulse, typical

• 尺寸公差

  ±0.254 mm

• 形状

  Cube

• 效率

  Tp >80%, >90% average, Rs >99.5% average

• 清洁

  See How to Clean Optics

• 方向

  To avoid damage, beam should enter prism marked with a dot

• 反射光束偏转角度

  90° ±5 arc min

• 工作温度范围

  -50 to 90°C

• 透射光束偏移

  ≤5 arc min

• 消光比

  Tp/Ts >500:1, 1000:1 average

• 波前畸变

  ≤λ/4 at 632.8 nm over the clear aperture

10 fc16pb。宽带偏振立方体波束分离器提供有效的偏振与多个或可调源使用。该25.4毫米立方体偏振器由一对精密直角棱镜精心粘合在一起，以减少波前失真。其中一个棱镜的斜边涂有多层介质极化波束分离器涂层，优化波长范围为900至1300纳米。四个表面都涂有一层多层介质涂层，以减少表面反射损失。非偏振光束被分成两个正交的线性偏振分量。p偏振光被发射，s偏振光被反射，两者的吸收都可以忽略。消光比大于500:1，但平均为1000:1。这个独特的组件提供了标准立方体配置中宽带偏振器的所有优点。
