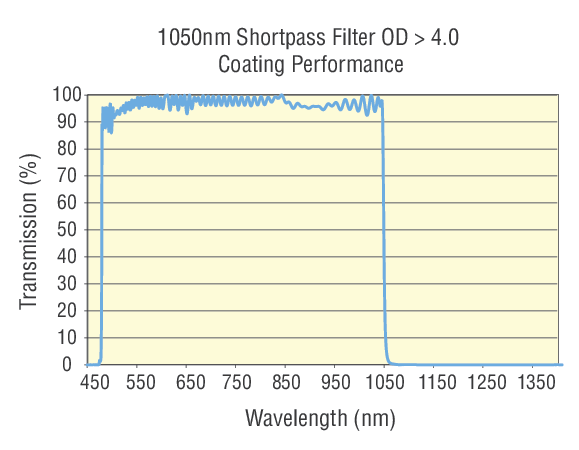

The 10SWF-1050-B Shortpass Edge Filter is a 0.98 in. (25.0 mm) diameter optical filter with a cut-off wavelength of 1050 ±10.5 nm with transmittance of 485-1036 nm, and rejection wavelength at 1085-1460 nm. Our short-wave pass filters have a steep transition between the region of transmission and reflection that is much steeper than colored glass filters. This short-wave pass filter has out-of-band rejection OD ≥ 4 with ≥ 91% transmission in the pass band and cut-off slope < 1%, making it ideal for wide variety of applications.

• 类型

  High Transmission Shortpass Filter

• 镜片尺寸

  Ø25.4 mm

• 截止波长

  1050 nm

• 截止波长公差

  ± 10.5 nm

• 透射范围

  485 - 1036 nm

• 透射

  ≥91%

• 截止波段

  1085 - 1460 nm

• 表面质量

  80-50 scratch-dig

• 尺寸公差

  +0.0/-0.2 mm

• 温度范围

  -50 to 100°C

• 防潮性能

  Per MIL-STD-810E, Method 507.3, Procedure III Modified to 7 cycles

10SWF-1050-B的短通边缘滤波器是0.98英寸。(25.0毫米)直径滤光片的截止波长1050±10.5 nm的透光率485 - 1036 nm,和拒绝在1085 - 1460纳米波长。我们的短波通滤波器在透射和反射区域之间有一个陡峭的过渡，比彩色玻璃滤波器陡得多。这个短波通滤波器带外抑制OD≥4≥91%传输通带和截止斜率< 1%,使它适合各种各样的应用程序。
