The 10B20BB.3 is an Ultra-broadband Dielectric Mirror with a 25.4 inch diameter, 6.35 mm thickness, and absolute Reflectivity > 99% at an AOI of 0-50°, from 350-1100 nm. Newport’s Ultra-broadband mirrors are IBS coated with layers of dielectric materials to use for high reflection and high damage threshold in a wide wavelength regime. The BB.2 coated mirror covers the visible to near IR wavelengths (350-1100 nm).

• 波长区域

  Broadband

• 波长范围

  350-1100 nm

• 镜片形状

  Round

• 镜片尺寸

  Ø25.4 mm

• 材料

  UV Grade Fused Silica

• 镀膜类型

  Ultra-broadband Dielectric

• 镀膜代码

  BB.3

• 表面质量

  20-10 scratch-dig

• 表面平面度

  λ/10 at 632.8 nm

• 楔形

  <3 arc min

• 通光孔径

  ≥central 80% of diameter

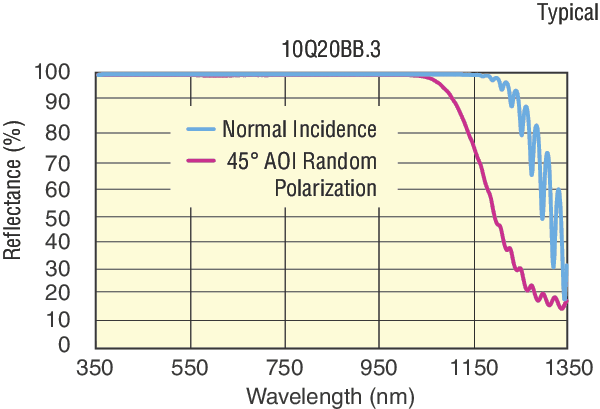

• 反射率

  Rs, Rp>99% @ 350-1100 nm

• 损伤阈值

  5 J/cm2 at 20 ns, 20 Hz at 1064nm1 J/cm2 at 20 ns, 20 Hz at 355 nm and 532 nm

• 厚度

  6.35 mm

• 厚度公差

  ±0.25 mm

• 直径

  25.4 mm

• 直径公差

  ±0.25 mm

• 倒角

  0.51 ± 0.25 mm face width bevel mm face width

• 倒角公差

  45°

• 清洁

  See How to Clean Optics

10 b20bb。3是一个Ultra-broadband介质镜直径25.4英寸,6.35毫米的厚度,和绝对反射率> 99%的AOI 0-50°,从350 - 1100 nm。纽波特公司的超宽带反射镜是一种涂有介电材料层的IBS，用于宽波长范围内的高反射和高损伤阈值。BB.2涂层反射镜覆盖了近红外波长(350-1100纳米)的可见光。
