●测量光致发光强度的角度依赖性
●可能对仿真结果进行比较
●光学对准容易、测量方便
●可以选择LED光源单元的激发波长(可选)
●防止材料降解的集成快门
产品型号 | C14234-11 |
---|---|
测量角度范围 | −90° to 90° (the vertical direction of sample is 0°) |
激发波长 | 365 nm |
发射波长 | 350 nm to 950 nm |
角分辨率 | Approx. 3.5° |
样本尺寸 | □30 mm (in case use R20 mm lens) |
激发光角度范围 | −90° to 90° (the vertical direction of sample is 0°) |
激发光源 | Fiber output LED 365 nm |
激发光源光斑尺寸 | < Φ 1 mm (in case use 365 nm LED) |
激发光源最大功率 | Approx. 1.5 mW (in case use 365 nm LED and Φ365 μm fiber) |
输入供电电压 | AC100 V to AC240 V, 50 Hz/60 Hz |
功耗 | Approx. 115 VA (without data analizer) |
存储环境温度 | −10 ˚C to +50 ˚C |
工作环境温度 | +10 ˚C to +30 ˚C |
工作环境湿度 | less than 70 % (with no condensation) |

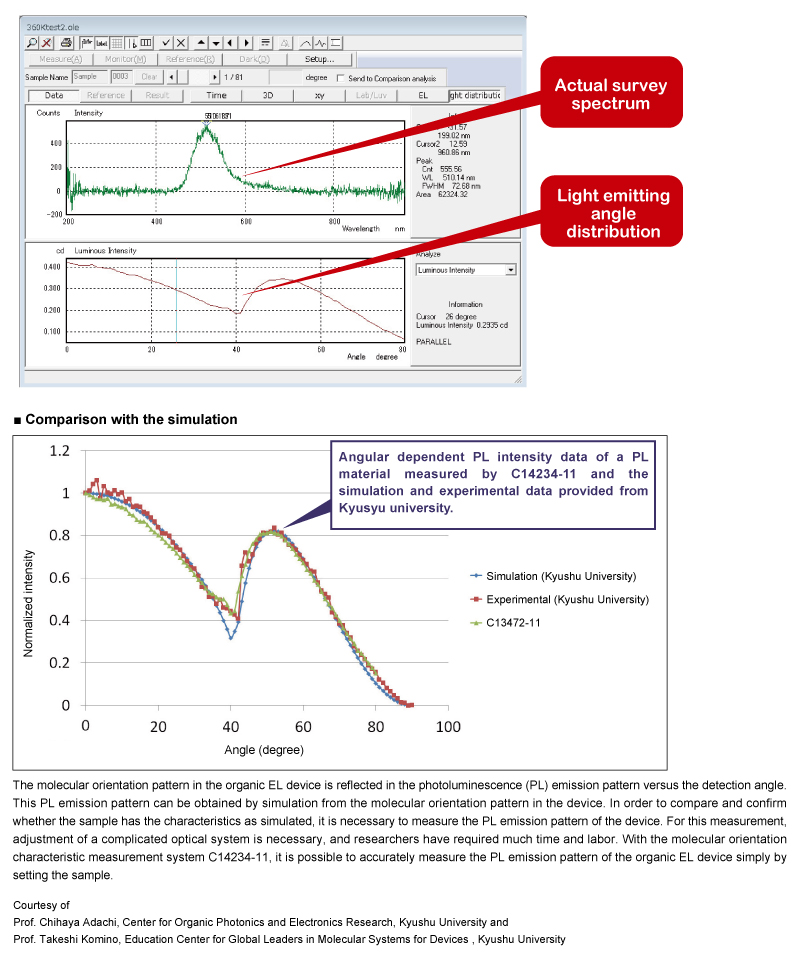

通过与一个已知的样本数据验证测量数据来确认结果对应于指定的精度。
测量了样本的光致发光光谱。
