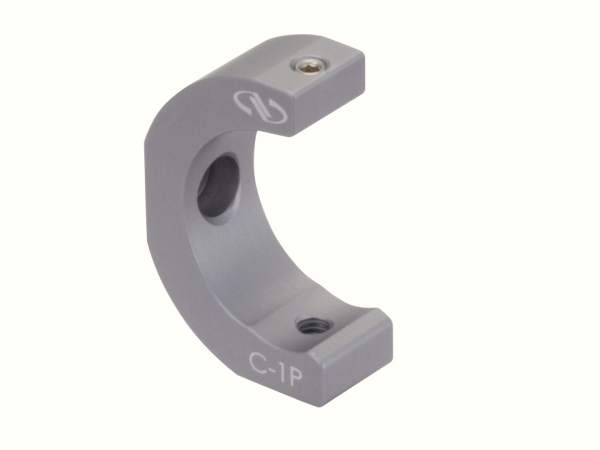

The M-C-1P C-Clamp is a multifunction post clamp which can interface optic mounts to a 1-in diameter optical post. The open side of the C-clamp means it can be directly attached to a post without having to slide it on from the end of the post. Once installed, the M-C-1P has two mounting points located 90° apart for the mounting of components. One of the mounting points has a threaded M4 hole while the other has a counterbored through hole. This C-Clamp can also be used as a post collar when using the Q-TMS series post holders or can be used to securely post-mount cylindrical optical components like mirrors.


M-C-1P c夹是一种多功能柱夹，可将光学支架与直径1英寸的光学柱连接。C-clamp的开口侧意味着它可以直接连接到柱子上，而不必从柱子的末端滑动。一旦安装完毕,M-C-1P有两个安装点位于90°分开安装的组件。其中一个安装点具有螺纹M4孔，而另一个安装点具有钻穿孔。当使用Q-TMS系列柱架时，这种c型夹还可以用作柱箍，或用于安全地安装柱面光学元件，如镜子。
