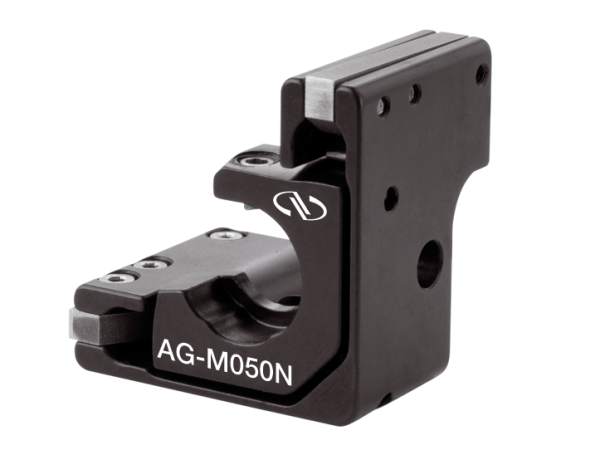

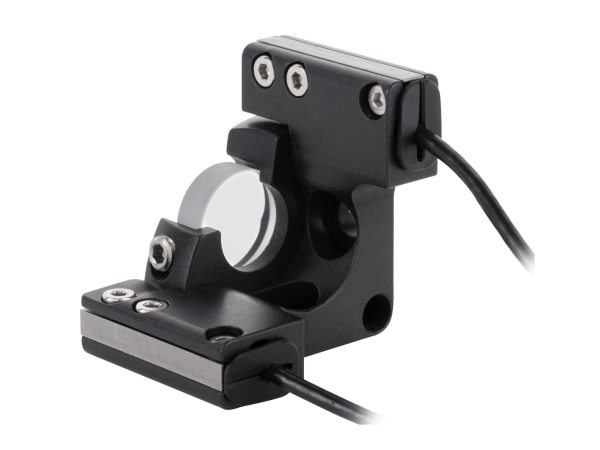

The AG-M050N 0.5 inch (12.7 mm) Agilis Optical Mount features Newport’s new, proprietary, non-resonant piezo direct motors. These highly integrated motors are directly coupled to the moving platen. When idle, spring forces lock the mirror’s position for true set and forget long term stability. Agilis mounts have a faster adjustment speed than alternative screw driven designs. In contrast to ultrasonic motors, the Agilis non-resonant motor concept makes small adjustments more predictable with its 50 nm incremental motion capability, ideal for ultra-sensitive optical alignments.
Use with either the Agilis AG-UC2 handheld, AG-UC8 or AG-UC8PC controllers.

• 类型

  Center Mount

• 镜片直径

  12.7 mm

• 电动轴

  2

• 角度范围

  ±1.8°

• 螺纹类型

  8-32 (M4) CLR

• 电缆长度

  1.2 m

• 端口类型

  4-Pin Mini-DIN

• 机制

  Piezo Motor

• 工作温度

  10 to 35°C

• 重量

  25 g

• 最大速度

  1.5°/s

• 灵敏度

  2 µrad

agl - m050n 0.5英寸(12.7 mm)的Agilis光学支架采用了新港公司的新型、专有的、非共振压电直接电机。这些高度集成的电动机直接耦合到移动平台上。当空闲时，弹簧力锁住镜子的位置，以便真正设置，忘记了长期的稳定性。Agilis支架具有比其他螺杆驱动设计更快的调整速度。与超声波电机不同，Agilis非共振电机的概念使小的调整更容易预测其50纳米增量运动能力，理想的超灵敏光学校准。与Agilis AG-UC2手持，AG-UC8或AG-UC8PC控制器一起使用。
