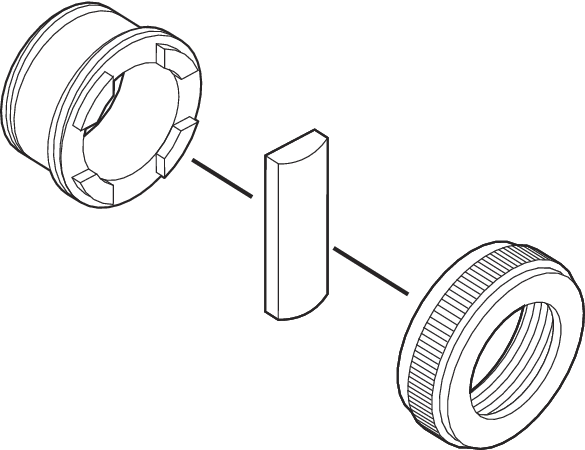

The CYH-2 Cylindrical Lens Holder has been designed to accommodate the special geometry of cylindrical optics. The most unique feature of this holder is the capability to make rotational adjustments required for precision cylindrical lens alignment. The holders consist of a lens base that centers the 0.75 to 1.00 inch by 2 inch lens in the holder and a knurled retaining ring to hold the lens in place. The inner face of the retaining ring is a Delrin washer that contacts the lens surface. This configuration avoids the possibility of a point contact between the lens surface and a metal retaining ring. Each model will hold two different sizes of rectangular shaped optics. It fits into LM-R Series Mounts to provide accurate positioning and easy rotation for cylindrical axis alignment. Additional mounting options for the CYH-2 include: compatibility with the RSP-2T Rotary Stage for accurate indexed lens rotation and the LP-2A 5-axis gimbal mount for maximum fine positioning.


CYH-2柱面透镜架被设计来适应柱面光学的特殊几何形状。该支架最独特的特点是能够进行旋转调整所需的精密圆柱透镜对准。该支架由一个以0.75到1.00英寸* 2英寸镜头为中心的透镜底座和一个滚花固定环组成。护圈的内表面是一个接触透镜表面的Delrin垫圈。这种结构避免了透镜表面和金属挡圈之间的点接触的可能性。每个模型将容纳两个不同尺寸的矩形光学。它适用于LM-R系列支架，为圆柱轴的定位提供了精确的定位和方便的旋转。CYH-2的附加安装选项包括:与RSP-2T旋转台兼容，可实现精确的指数化镜头旋转，以及与LP-2A 5轴万向架安装兼容，可实现最佳的精细定位。
