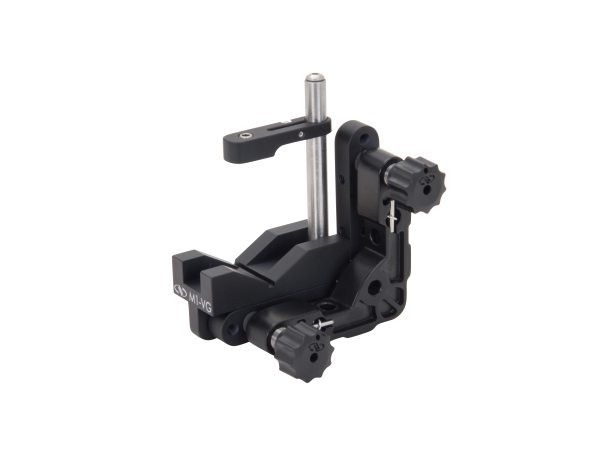

The M1-VG V-Groove mounts ideal for mounting cylindrical objects like lens tubes. The M1-VG is has large Vie platform for holding cylindrical objects from 0.25 in.(6.4 mm) to 1.5 in (38.1 mm) in diameter. The M1-VG is configurable for right- or left-handed operation. Two precision 100-TPI adjustment screws are standard providing exceptionally smooth, high-resolution adjustment.

• 驱动方式

  Knob, non-locking

• 调节

  θx, θy

• 灵敏度

  3.8 arc sec

• 特殊功能

  V-Groove Mount

• 角范围

  ±4°

• 调节螺纹

  100 TPI

• 材料

  Coated Aluminum

• 机制

  Kinematic

• 螺纹类型

  8-32 (M4) CLR

M1-VG v型槽安装非常适合安装像透镜管这样的圆柱形物体。M1-VG具有大型Vie平台，用于容纳直径从0.25英寸(6.4 mm)到1.5英寸(38.1 mm)的圆柱形对象。M1-VG可配置为右或左操作。两个精密的100-TPI调整螺丝是标准提供异常平滑，高分辨率调整。
