The CONEX-MFACC, a compact, all-steel construction linear stages with integrated controller, provides precision motion with 0.1 μm Minimum Incremental Motion and excellent stability and stiffness. The CONEX-MFACC features a DC-motor with an integrated gear-box and a motor-mounted high resolution rotary encoder. Faster motion with higher reliability and lower backlash makes it ideal for applications requiring small incremental motion with high dynamic speed and good repeatability. Typical applications for this stage are fiber optic alignment, laser diode research, bio-medical applications and inspection systems.


The CONEX controller comes with a USB cable and a CONEX-PS-CB for daisy-chaining modules. Power supply to be ordered separately. For OEM applications, an optional retainer to secure the USB and power cables is available.

• 行程范围

  25 mm

• 驱动方式

  DC servo

• 位移台类型

  MFA-CC

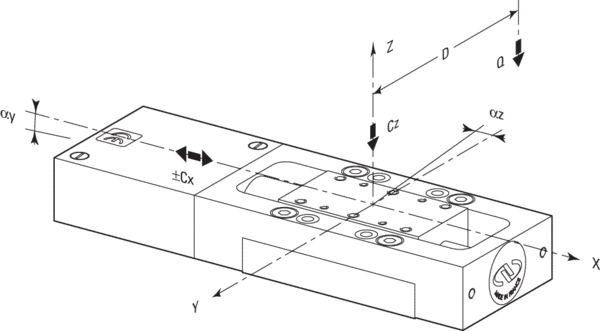

• 轴向负载

  10 N

• 轴向负载，反向

  -10 N

• 中心负载

  50 N

• 最大速度

  2.5 mm/s

• 最小位移增量

  0.10 µm

• 单向重复精度，典型值

  ±0.08 µm

• 单向重复精度，保证值

  ±0.15 µm

• 绝对精度（典型值）

  ±0.8 µm

• 绝对精度，保证值

  ±3.0 µm

• 双向重复精度，典型值

  ±0.15 µm

• 双向重复精度，保证值

  ±0.75 µm

• 翻转顺应性

  60 µrad/Nm

• 俯仰，典型值

  ±25 µrad

• Pitch, Guaranteed

  ±75 µrad

• 俯仰顺应性

  80 µrad/Nm

• 偏转，典型值

  ±30 µrad

• Yaw, Guaranteed

  ±50 µrad

• 偏摆顺应性

  80 µrad/Nm

• 限位开关

  Optical

• 原点

  Optical, at lower limit

• 原点重复精度

  ±2.5 µm

• Encoder Resolution

  0.0176994 µm

• 电缆长度

  3 m

• 计算机接口

  USB

• Controller Dimensions

  93.2 x 53 x 23 mm

• MTBF

  10,000 h (25% load, 10% duty cycle)

• RoHS

  Compliant

CONEX-MFACC,紧凑,全钢结构线性阶段集成控制器,提供精密运动0.1μm最小增量运动和良好的稳定性和刚度。CONEX-MFACC的特点是DC-motor与集成变速箱和电机安装的高分辨率旋转编码器。运动速度快，可靠性高，间隙小，适用于要求运动增量小，动态速度快，重复性好的应用场合。该阶段的典型应用包括光纤对准、激光二极管研究、生物医学应用和检测系统。

CONEX控制器配有USB电缆和用于菊花链模块的CONEX- ps - cb。电源另行订购。对于OEM应用程序，一个可选的保持器来保护USB和电源电缆是可用的。
