The LTA-HS High Speed Motorized Actuator is optimized for high-speed applications and provides a 50 mm travel range. LTA actuators are designed to fit into selected manual stages and other opto-mechanical components as direct replacement for manual micrometers. [Refer to the actuator compatibility table.] Features a space-saving design with the motor and lead screw mounted side-by-side. This reduces the actuator length by 50% and minimizes the unwanted effects of long cantilever loads on micro-positioning equipment. The non-rotating tip prevents wear and avoids periodic motion variations which can be caused by variable contact between a rotating tip and its mating surface. Precision motion is accomplished through a miniature DC servo motor with optimized output torque. This allows for faster motion and high load capacity. A movable limit switch prevents over-travel. The switch positions can be changed in minutes to adjust the maximum travel position. A manual adjustment knob permits quick positioning of the actuator when the motor is off. A scale indicates coarse actuator position in both millimeters and inches.

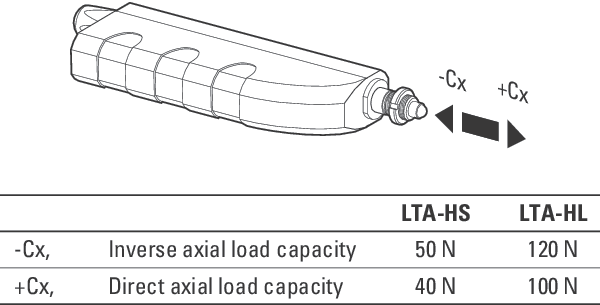

• 轴向负载 (-Cx, +Cx)

  40 N

• 逆轴向负载 (-Cx)

  -50 N

• 行程范围

  50 mm

• 最小位移增量

  0.10 µm

• 最大速度

  5 mm/s

• Accuracy, Typical

  ±2.2 µm

• Accuracy, Guaranteed

  ±5.0 µm

• 双向重复精度（典型值）

  ±0.30 µm

• 双向重复精度，保证值

  ±1.0 µm

• 单向重复精度（典型值）

  ±0.10 µm

• 单向重复精度，保证值

  ±0.25 µm

• 驱动螺距

  1 mm

• 减速轮

  1:14

• 原点

  Optical, at lower limit

• 原点重复精度

  ±2 µm

• Encoder Resolution

  0.03539317 µm

• 限位开关

  Optical switches, both ends, adjustable

• 电缆长度

  3 m

• 接头

  DB25 Male

• 功耗

  6 W

• 重量

  0.48 kg

• MTBF

  10,000 h (25% load, 30% Duty cycle)

• RoHS

  Compliant

LTA-HS高速电动执行机构是为高速应用而优化的，并提供了50mm的行程范围。LTA执行机构的设计适用于选定的手动级和其他光学机械部件，作为手动千分尺的直接替代品。[参见执行机构兼容性表。具有节省空间的设计，电机和丝杠并排安装。这将执行机构的长度缩短了50%，并最大限度地减少了长悬臂载荷对微定位设备的不良影响。非旋转刀尖可以防止磨损，避免由于旋转刀尖与配合面接触不同而引起的周期性运动变化。精密运动是通过一个微型直流伺服电机与优化输出扭矩完成的。这允许更快的运动和高负载能力。可移动的限位开关可防止行程过长。开关位置可在几分钟内改变，以调整最大行程位置。手动调节旋钮可以在电机关闭时快速定位执行机构。刻度表显示粗大的执行机构位置，单位为毫米和英寸。
