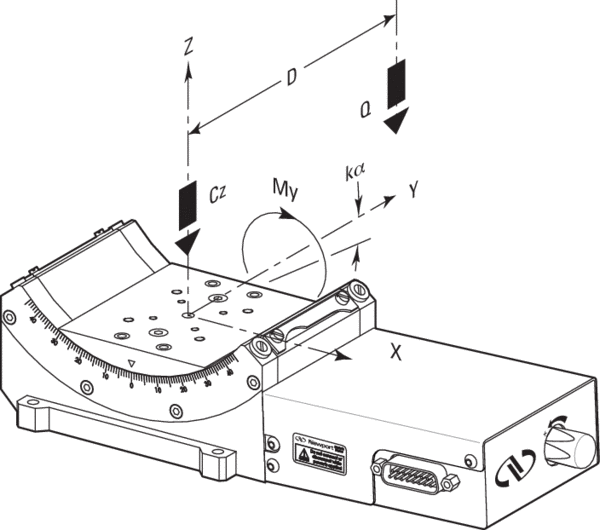

The M-BGM120PEBV6 Metric Goniometer features a worm mounted rotary encoder for improved accuracy and repeatability. The encoder also provides a method for detecting motor stalling, an important feature for applications with high loads or torques. The PE full-step version with a reduction gear provides a higher torque and is recommended for high inertia payloads and vacuum applications. BG Series goniometric cradles rotate on a transverse axis above the platform. Compared to full 360° rotation stages, they offer maximum free access to the rotating part and allow construction of very compact multi-axis rotation assemblies. BG cradles are designed so that orthogonal mounting of two adjacent-size cradles (e.g., BGS50 and BGS80) provides two perpendicular rotational axes intersecting at about the same point in space. Mounting a rotation stage under the assembly adds a third orthogonal rotation axis through the same point. Precision rotation is ensured by a precision ground, hardened worm gear drive. Single row ball bearings and precision ground tool-steel races ensure smooth rotation with minimal wobble and eccentricity. A home switch, conveniently located at the center of travel, facilitates the return of the platform to a level position.
Due to the various feed-through configurations and preferences of customers, the cable supplied with the stage is not vacuum compatible.
Can be ordered with a vacuum compatible 25pin SubD connector.
中心负载
200 N
角范围
-45 to +45°
行程范围
120 mm
螺纹类型
M6
最小位移增量
2.0 mdeg
最大速度
2°/s
最大扭矩
10 Nm
摆动(典型值)
±100 µrad
Accuracy, Typical
±25 mdeg
单向重复精度(典型值)
±2.0 mdeg
双向重复精度(典型值)
±12 mdeg
Transversal Compliance
10 µrad/Nm
原点
Optical, centered
原点重复精度
±2.5 mdeg
Encoder Resolution
0.001°
限位开关
Mechanical, at ±45°
接头
DB25M
电缆长度
3 m
轴向刚度
10 N/µm
真空兼容性
10-6 hPa
重量
8.5 kg
MTBF
20,000 h (25% load, 10% duty cycle)
RoHS
Compliant
M-BGM120PEBV6公制测角仪采用蜗杆式旋转编码器,提高精度和重复性。编码器还提供了一种检测电机失速的方法,这是高负载或扭矩应用的一个重要特征。PE全级减速齿轮提供更高的扭矩,推荐用于高惯性载荷和真空应用。BG系列测角支架在平台上方的横轴上旋转。满360°旋转阶段相比,他们提供最大自由获取的转动部分,允许建设非常紧凑多轴旋转总成。BG支架的设计使得两个相邻尺寸的支架(例如BGS50和BGS80)的正交安装能够提供两个垂直的旋转轴,它们相交于空间中的同一点。安装在组件下的旋转台通过同一点添加第三个正交旋转轴。精密旋转由精密磨削、淬火蜗轮传动保证。单列滚珠轴承和精密的地面工具钢制滚道确保平稳旋转,最小的抖动和偏心。一个家庭开关,方便地位于旅行中心,促进平台返回到一个水平位置。
由于客户的各种馈线配置和喜好,与舞台配套的电缆不能与真空兼容。
可以订购与真空兼容的25pin SubD连接器。
