The RV160PEV6 High Torque Vacuum Compatible Rotation Stage provides high-precision angular positioning accuracy combined with high load capacity. This 160 mm diameter stage features a Mini-step drive enabling high angular speed motions up to 20°/s. All RV stages are constructed of tool steel, with rotation accuracy ensured by ground bearing surfaces. A double row of preloaded bearings allows for high off-center loads in a reduced footprint. The single monolithic design offers improved stiffness without compromising dynamic performance. Precise rotation is ensured by a precision ground and hardened worm gear. A rotary encoder mounted on the worm gear shaft provides 0.001° position feedback resolution.

Due to the various feed-through configurations and preferences of customers, the cable supplied with the stage is not vacuum compatible.
Can be ordered with a vacuum compatible 25pin SubD connector.

• 角范围

  360°

• 最大速度

  1°/s

• 最大扭矩

  17 N·m

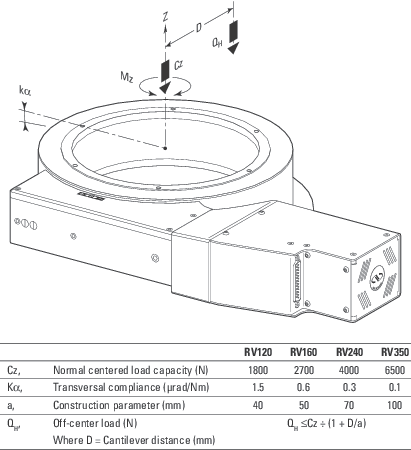

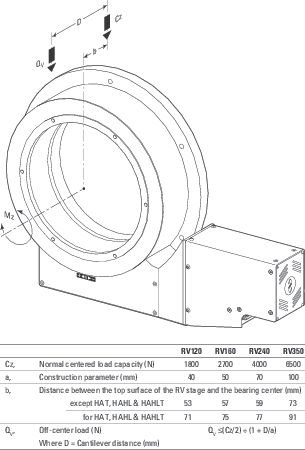

• 中心负载

  1350 N

• 螺纹类型

  M5

• 最小位移增量

  1.0 mdeg

• 单向重复精度，典型值

  ±0.35 mdeg

• 单向重复精度，保证值

  ±1.0 mdeg

• 双向重复精度，典型值

  ±0.7 mdeg

• 双向重复精度，保证值

  ±2.0 mdeg

• Accuracy, Typical

  ±4.0 mdeg

• Accuracy, Guaranteed

  ±5.0 mdeg

• 摆动（典型值）

  ±5.0 µrad

• 摆动，保证值

  ±10 µrad

• Eccentricity, Typical

  ±0.8 µm

• 偏心率，保证值

  ±2.0 µm

• 惯性

  100 kg.m2

• Transversal Compliance

  0.6 µrad/N·m

• 原点

  Optical, centered

• 原点重复精度

  ±0.5 mdeg

• 限位开关

  Optical, at ±170, can be disabled for continuous rotation (except HAT & HAHLT versions)

• Encoder Resolution

  0.001°

• 电缆长度

  3 m

• 直径

  160 mm

• 孔径

  110 mm

• 接头类型

  DB25 Male

• 横向刚度（3 点）

  1.2 µrad/N·m

• 真空兼容性

  10-6 hPa

• 重量

  9 kg

• MTBF

  20,000 h (25% load, 10% duty cycle)

• RoHS

  Compliant

RV160PEV6高扭矩真空兼容旋转工作台，提供高精度角定位精度和高负载能力。这个直径160毫米的阶段特性Mini-step驱动器使高角速度运动20°/ s。RV各级均为工具钢结构，旋转精度由地面轴承面保证。双排预加载轴承允许高偏心负荷在减少足迹。单一的整体设计提供改进的刚度，而不影响动态性能。精密的磨削和淬火蜗轮保证了精确的旋转。蜗杆齿轮轴上的旋转编码器安装提供了0.001°位置反馈解决。

由于客户的各种馈线配置和喜好，与舞台配套的电缆不能与真空兼容。

可以订购与真空兼容的25pin SubD连接器。
