The FCR100 rotation stage combines a fully integrated stepper motor controller (iPP™technology) and precision rotation stage in a small footprint. Similar to the CONEX series for DC motor, the FCR100 comes fully pre-configured and enables true out-of-box control. The iPP™technology used in the FC series completely eliminates controller or driver set up, allowing users to simply connect USB communication, plug in the power supply and start the motion GUI. Power supply and USB cable to be ordered separately. Features of the FCR100 includes: robust construction of crossed roller bearing for high position accuracy and the stepper motor directly attached to the worm screw providing high output torque. Up to 4 FC series units can be daisy-chained and controlled by a single GUI, via USB or direct RS-422 interface.

• 角范围

  360°

• 最大速度

  20°/s

• 最大扭矩

  0.5 N·m

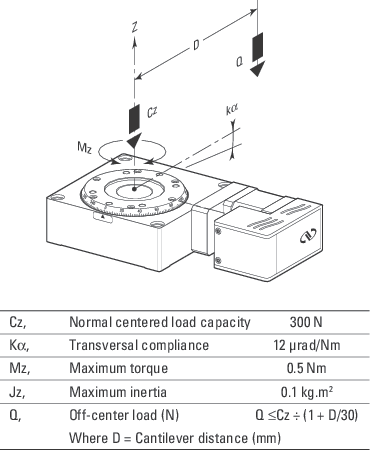

• 中心负载

  300 N

• 最小位移增量

  2.5 mdeg

• 单向重复精度，典型值

  ±0.50 mdeg

• 单向重复精度，保证值

  ±1.0 mdeg

• 双向重复精度，典型值

  ±2.5 mdeg

• 双向重复精度，保证值

  ±6.0 mdeg

• Accuracy, Typical

  ±10 mdeg

• Accuracy, Guaranteed

  ±20 mdeg

• 摆动（典型值）

  ±12 µrad

• 摆动，保证值

  ±25 µrad

• Eccentricity, Typical

  ±1.4 µm

• 偏心率，保证值

  ±3.0 µm

• Transversal Compliance

  20 µrad/N·m

• 原点

  Optical, centered

• 原点重复精度

  ±2.5 mdeg

• 电缆长度

  5 m

• 孔径

  30 mm

• 计算机接口

  RS422 and USB

• 重量

  2.25 kg

• MTBF

  20,000 h (25% load, 10% duty cycle)

• RoHS

  Compliant

FCR100旋转阶段结合了一个完整的步进电机控制器(iPP™技术)和精密旋转阶段在一个小的足迹。类似于CONEX系列的直流电机，FCR100完全预先配置和启用真正的开箱即用控制。iPP™技术中使用FC系列完全消除控制器或驱动程序设置,允许用户直接连接USB通信,插入电源,开始运动GUI。电源和USB电缆分开订购。FCR100的特点包括:交叉滚子轴承结构坚固，定位精度高，步进电机直接连接蜗杆，输出扭矩大。最多4个FC系列单元可以通过USB或直接RS-422接口，通过菊花链和单个GUI控制。
