The FCL100 is a Stepper Motor Linear Stage with 100 mm of travel. The FCL series linear stages combine a fully integrated stepper motor controller and mid-range travel linear stage in a small footprint. Similar to the CONEX series for DC motor, the FCL stage comes fully pre-configured and enables true out-of-the box control. The iPP technology used in the FC series completely eliminates controller or driver set up, allowing users to simply connect the USB communication, plug in the power supply and start the included motion GUI. Features of the FCL stages include: FEM optimized aluminum body to avoid thermal expansions, robust construction of recirculating ball bearing for highly accurate linear motion and backlash-free ballscrew drive for rapid movement with short, step and settling time. Up to 4 FCL units can be daisy-chained and controlled with the same GUI.
Cables and power supply sold separately.

• 行程范围

  100 mm

• 最大速度

  20 mm/s

• 最小位移增量

  0.15 µm

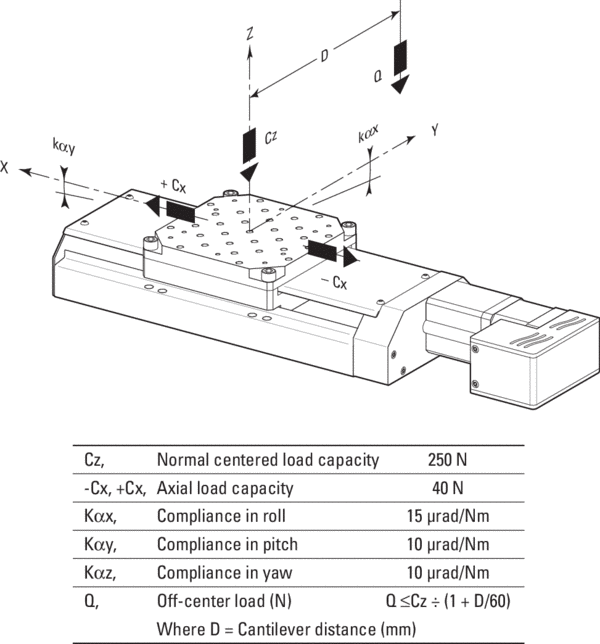

• 中心负载

  250 N

• 俯仰顺应性

  10 µrad/Nm

• 偏摆顺应性

  10 µrad/Nm

• 翻转顺应性

  15 µrad/Nm

• 轴承

  Recirculating Ball Bearings

• 驱动机制

  Backlash free ball screw

• 驱动方式

  2-phase stepper

• 驱动螺距

  2 mm

• 限位开关

  Optical

• 原点

  Optical, centered

• 原点重复精度

  ±2.5 µm

• 计算机接口

  RS232 and USB

• 重量

  3.3 kg

• MTBF

  20,000 h (25% load, 30% duty cycle)

• RoHS

  Compliant

FCL100是步进电机线性级，行程为100毫米。FCL系列线性级结合了一个完全集成的步进电机控制器和中程旅行线性级在一个小的足迹。与用于直流电机的CONEX系列类似，FCL阶段完全预先配置，并支持真正的开箱即用控制。在FC系列中使用的iPP技术完全消除了控制器或驱动程序的设置，允许用户简单地连接USB通信，插入电源并启动所包含的运动GUI。FCL级的特点包括:FEM优化铝型材，避免热膨胀;再循环球轴承结构坚固，线性运动精度高;最多4个FCL单元可以用菊花链和相同的GUI控制。

电缆和电源分开销售。
