The MTN300PPV6 Linear Stage features an all-steel construction and combines high stiffness and thermal stability with a low profile design. This stepper drive version has 300 mm of travel and 0.2 μm Minimum Incremental Motion. MTN stages can bear up to 100 kg with an exceptional high axial load capacity up to 20 N. Features include: opposing single-row bearing surface, a diamond-corrected lead screw, a matched, precision-lapped nut and a non-migrating ball cage design. The nut design includes anti-backlash preloading and a sophisticated decoupling system ensuring little to no stage movement. The non-migrating ball cage design prevents any drift in vertical applications. Vacuum compatible to 10-6hPa.

• 行程范围

  300 mm

• 最大速度

  20 mm/s

• 最小位移增量

  0.40 µm

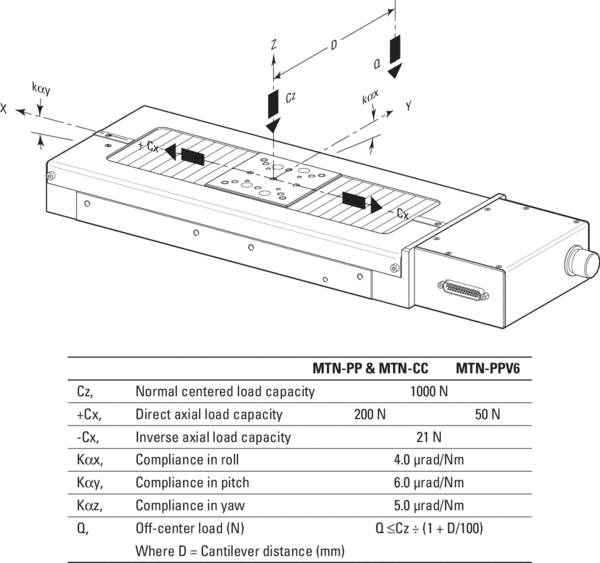

• 中心负载

  1000 N

• 轴向负载 (-Cx, +Cx)

  100 N

• 逆轴向负载 (-Cx)

  -21 N

• Accuracy, Typical

  ±2.5 µm

• Accuracy, Guaranteed

  ±3.0 µm

• 单向重复精度，典型值

  ±0.50 µm

• 单向重复精度，保证值

  ±.75 µm

• 双向重复精度，典型值

  ±2.25 µm

• 双向重复精度，保证值

  ±2.75 µm

• 俯仰，典型值

  ±30 µrad

• Pitch, Guaranteed

  ±60 µrad

• 俯仰顺应性

  6 µrad/Nm

• 偏转，典型值

  ±30 µrad

• Yaw, Guaranteed

  ±53 µrad

• 偏摆顺应性

  5 µrad/Nm

• 翻转顺应性

  4 µrad/Nm

• 驱动螺距

  4 mm

• 限位开关

  Optical

• 原点

  Optical, centered

• 原点重复精度

  ±5 µm

• 电缆长度

  3 m

• 接头类型

  DB25 Male

• 真空兼容性

  10-6 hPa

• 重量

  18.8 kg

• MTBF

  20,000 h (25% load, 10% duty cycle)

• RoHS

  Compliant

MTN300PPV6线性级采用全钢结构，结合高刚度、热稳定性和低剖面设计。这步进驱动版本有300毫米的旅行和0.2μm最小增量运动。MTN级能够承受高达100公斤的轴向载荷，最高承载力可达20牛顿。特点包括:相对的单列轴承表面，钻石校正的丝杠，匹配的精确研磨螺母和非移动球笼设计。螺帽的设计包括防反弹预压和一个复杂的解耦系统，确保很少或没有阶段运动。非迁移球笼的设计，防止任何漂移在垂直应用。真空兼容10-6hPa。
