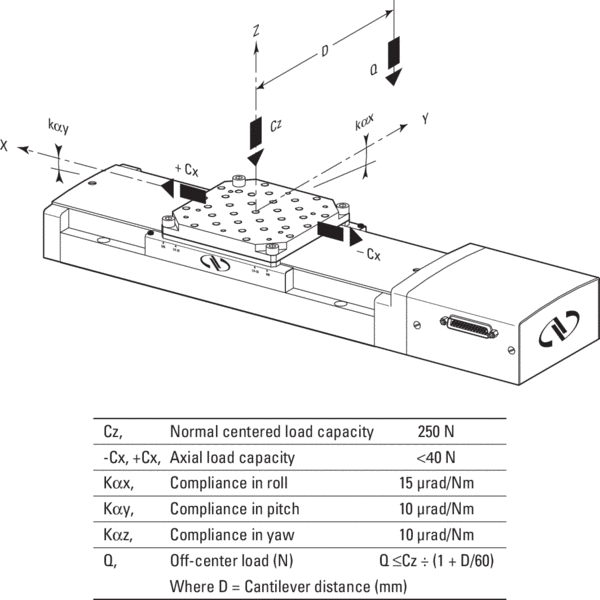

The M-ILS50CC DC Servo Linear Stage offers a 50 mm travel range and combines fast, sub-micron resolution motion in a highly stiff and robust package. Its extruded aluminum body with Metric threaded holes has been optimized to avoid bending effects caused by the different thermal expansion coefficients of the aluminum body and steel rails. The special U-profile also provides stiffness to the structure while keeping the mass low. A preloaded, backlash-free ballscrew provides rapid movements with fast step and settling times. The screw is accurately profiled to reduce heating to a minimum and extend the life of the stage. Recirculating ball bearing slides ensure accurate linear motion and eliminate ball cage migration found on typical linear ball bearings or crossed roller bearings. Position measurements are read with a 4000 pts/rev. encoder located directly on the screw, avoiding screw/motor coupling errors. An upper rigid cover prevents damage to the drive train and protects it from dust, debris and other pollutants. ILS Series stages also feature an origin located at the center of travel for repeatable initialization, limit switches to prevent over travel, and elastomeric end-of-run dampers for smooth emergency braking.


该M-ILS50CC直流伺服线性级提供了一个50毫米的行程范围，并结合了快速，亚微米分辨率的运动在一个高度僵硬和强大的包。优化了米制螺纹孔挤压铝型材，避免了铝型材与钢轨热膨胀系数不同造成的弯曲效应。特殊的u型型材还提供了刚度的结构，同时保持低质量。预加载，无后摆滚珠丝杆提供快速的运动，快速的步骤和沉淀时间。螺杆外形精确，将加热降至最低限度，延长舞台寿命。滚珠轴承滑块可保证精确的直线运动，消除典型的直线滚珠轴承或交叉滚子轴承上的球笼移动。位置测量用4000点/转速读取。编码器直接安装在螺杆上，避免螺杆/电机耦合误差。上刚性盖防止损坏驱动列车，并保护它免受灰尘，碎片和其他污染物。盲降系列还具有位于行程中心的原点，用于可重复初始化，限位开关用于防止过度行程，弹性末端阻尼器用于平稳紧急制动。
