The UTS50CC is DC motor driven and has a 50 mm travel range. This UTS stage incorporates a low-profile design with excellent stiffness and thermal stability, making it ideal for environments where temperature is not very well controlled. It also features an ultra-high resolution encoder mounted on the diamond-corrected lead screw, a reduction belt providing precise incremental motion capability and high dynamic speed control, and a precision lapped nut which includes anti-backlash preloading and a sophisticated decoupling system.

• 行程范围

  50 mm

• 最大速度

  40 mm/s

• 最小位移增量

  0.30 µm

• 中心负载

  200 N

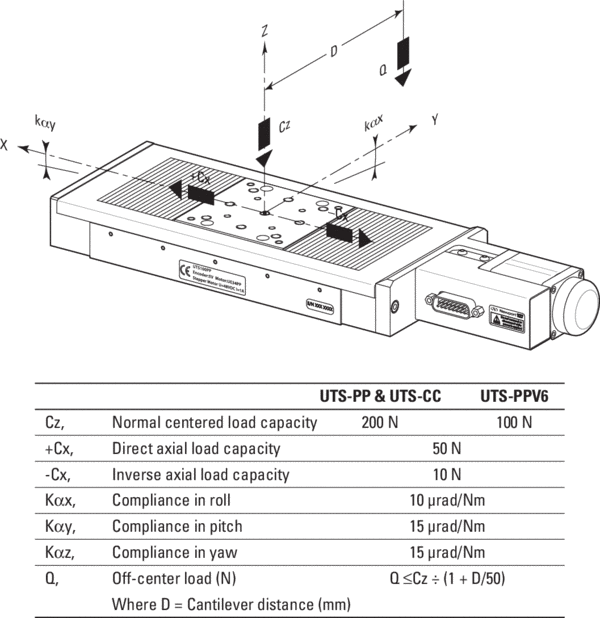

• 轴向负载 (-Cx, +Cx)

  50 N

• 逆轴向负载 (-Cx)

  -10 N

• Accuracy, Typical

  ±1.1 µm

• Accuracy, Guaranteed

  ±2.25 µm

• 单向重复精度，典型值

  ±0.20 µm

• 单向重复精度，保证值

  ±0.50 µm

• 双向重复精度，典型值

  ±0.6 µm

• 双向重复精度，保证值

  ±1.75 µm

• 俯仰，典型值

  ±17 µrad

• Pitch, Guaranteed

  ±37 µrad

• 俯仰顺应性

  15 µrad/Nm

• 偏转，典型值

  ±12 µrad

• Yaw, Guaranteed

  ±25 µrad

• 偏摆顺应性

  15 µrad/Nm

• 翻转顺应性

  10 µrad/Nm

• 驱动螺距

  2 mm

• Encoder Resolution

  0.1 µm

• 原点

  Optical, centered

• 原点重复精度

  ±0.5 µm

• 电缆长度

  3 m

• 接头类型

  DB15 Male

• 螺纹类型

  M4 and M6

• 重量

  2.8 kg

• MTBF

  20,000 h (25% load, 10% duty cycle)

• RoHS

  Compliant

UTS50CC采用直流电机驱动，行程范围为50mm。UTS级采用低轮廓设计，具有优异的刚度和热稳定性，非常适合温度控制不好的环境。它还具有超高分辨率的编码器安装在钻石校正的丝杠上，减速带提供精确的增量运动能力和高动态速度控制，以及一个包括抗反弹预压和复杂的解耦系统的精密搭接螺母。
