The MFA-CC compact all-steel construction linear stage provides 25 mm precision motion with 0.1 μm Minimum Incremental Motion and excellent stability and stiffness. The MFA-CC DC-motor features an integrated gear-box and a motor-mounted high resolution rotary encoder. Faster motion with higher reliability and lower backlash makes it ideal for applications requiring small incremental motion with high dynamic speed and good repeatability. Typical applications for this stage are fiber optic alignment, laser diode research, bio-medical applications and inspection systems.

• 行程范围

  25 mm

• 最大速度

  2.5 mm/s

• 最小位移增量

  0.10 µm

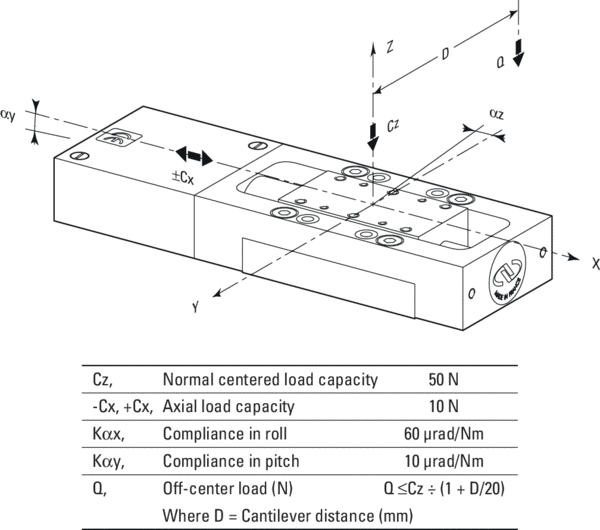

• 中心负载

  50 N

• 轴向负载 (-Cx, +Cx)

  10 N

• 逆轴向负载 (-Cx)

  -10 N

• Accuracy, Typical

  ±0.7 µm

• Accuracy, Guaranteed

  ±3.0 µm

• 单向重复精度，典型值

  ±0.08 µm

• 单向重复精度，保证值

  ±0.15 µm

• 双向重复精度，典型值

  ±0.15 µm

• 双向重复精度，保证值

  ±0.75 µm

• 俯仰，典型值

  ±25 µrad

• Pitch, Guaranteed

  ±100 µrad

• 俯仰顺应性

  80 µrad/Nm

• 偏转，典型值

  ±30 µrad

• Yaw, Guaranteed

  ±50 µrad

• 偏摆顺应性

  80 µrad/Nm

• 翻转顺应性

  60 µrad/Nm

• 驱动螺距

  0.5 mm

• 减速轮

  1:14

• Encoder Resolution

  0.0176994 µm

• 限位开关

  Optical switches

• 原点

  Optical, at lower limit

• 原点重复精度

  ±2.5 µm

• 电缆长度

  3 m

• 接头类型

  DB25 Male

• 螺纹类型

  M2 and M3

• 重量

  0.63 kg

• MTBF

  10,000 h (25% load, 30% Duty cycle)

• RoHS

  Compliant

MFA-CC紧凑的全钢结构的线性阶段为25毫米精度运动提供了0.1μm最小增量运动和良好的稳定性和刚度。MFA-CC DC-motor具有集成变速箱和电机安装的高分辨率旋转编码器。运动速度快，可靠性高，间隙小，适用于要求运动增量小，动态速度快，重复性好的应用场合。这一阶段的典型应用是光纤对准、激光二极管研究、生物医学应用和检测系统。
