The M-VP-25XL Metric Precision Compact Linear Stage provides high-precision positioning performance in an ultra-compact form factor. A low friction ball screw drive provides robust, reliable performance with excellent thrust and minimal heat induced position drift. Combined with excellent minimum incremental motion of 0.01 μm and travel of 25mm, the M-VP-25XL is ideal for applications requiring fine manipulation of small parts such as alignment of optical fibers. Featuring a manual adjustment knob, M-VP-25XL stages are versatile enough to handle automated and non-automated tasks alike. Typical applications include fiber alignment, micro-assembly, and micromachining.

• 电动轴

  X

• 行程范围

  25 mm

• 最大速度

  25 mm/s

• 最小位移增量

  0.010 µm

• 中心负载

  60 N

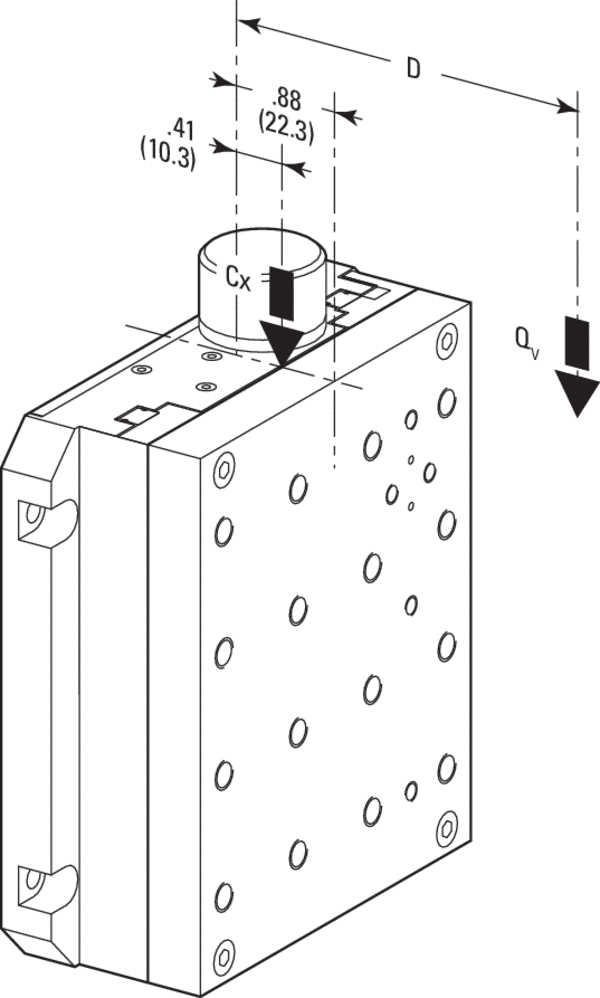

• 轴向负载 (-Cx, +Cx)

  40 N

• 逆轴向负载 (-Cx)

  -40 N

• Accuracy, Typical

  ±0.5 µm

• Accuracy, Guaranteed

  ±1.0 µm

• 双向重复精度，典型值

  ±0.05 µm

• 双向重复精度，保证值

  ±0.07 µm

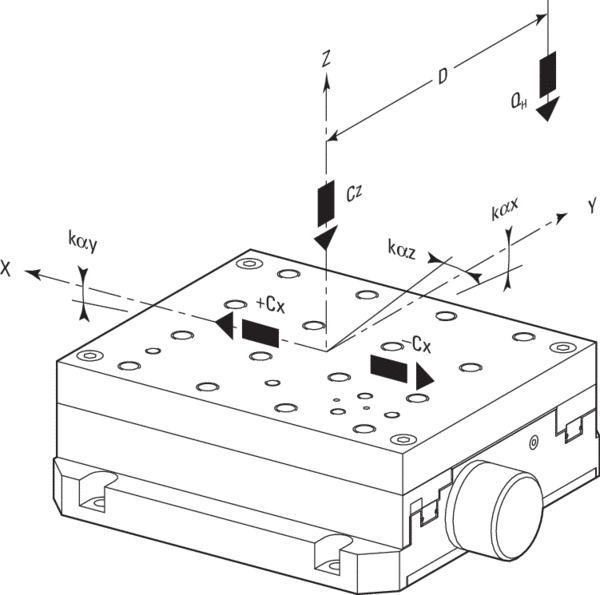

• 俯仰，典型值

  ±20 µrad

• Pitch, Guaranteed

  ±50 µrad

• 俯仰顺应性

  20 µrad/Nm

• 偏转，典型值

  ±20 µrad

• Yaw, Guaranteed

  ±50 µrad

• 偏摆顺应性

  30 µrad/Nm

• 翻转顺应性

  20 µrad/Nm

• 驱动螺距

  1 mm

• Encoder Resolution

  1 Vpp 20 µm pitch

• 限位开关

  Optical

• 原点

  Optical, centered

• 原点重复精度

  ±0.05 µm

• 电缆长度

  3 m

• 接头类型

  DB25 Male and DB15 Male

• 螺纹类型

  M4 and M6

• 重量

  1.5 kg

• MTBF

  20,000 h (25% load, 30% duty cycle)

• RoHS

  Compliant

M-VP-25XL公制精密紧凑型线性级在超紧凑的外形因素下提供了高精度的定位性能。低摩擦滚珠丝杠传动具有良好的推力和最小的热诱导位置漂移，具有可靠的性能。结合优秀的最小增量运动0.01μm和旅行的25毫米,M-VP-25XL是理想的应用程序需要精细操作的一小部分,如光纤的对齐。具有手动调节旋钮，M-VP-25XL阶段是万能的，足以处理自动化和非自动化任务一样。典型的应用包括光纤对准、微组装和微加工。
