457nm脉冲激光器
LLDQ457-150mw
产品特点:
l 操作简便,功率可调
l 低噪声
l 采用原装进口 LD,性能可靠,使用寿命长;
l 适用于光谱分析、材料分析、生物工程、光电检测、医疗等。
Wavelength (nm)波长 | 457±1 |
Operating mode工作方式 | Electro-optic Q-switched |
Average power (W)平均功率 | 1~ 150mW (150mW@10kHz) |
Single pulse energy (µJ)单脉冲能量 | 1~ 15(15μJ @10kHz) |
Rep. rate (kHz)频率 | 10 |
Pulse duration (ns)脉宽 | ~3 @10kHz |
Peak power (kW)峰值功率 | 1~5 (5kW@10kHz) |
Ave power stability (over 4 hours)功率稳定性 | <3%, <5% |
Warm-up time (minutes)预热时间 | <10 |
Beam divergence, full angle (mrad)发散角 | <3 |
Beam diameter at the aperture (1/e2,mm)光斑尺寸 | <2 |

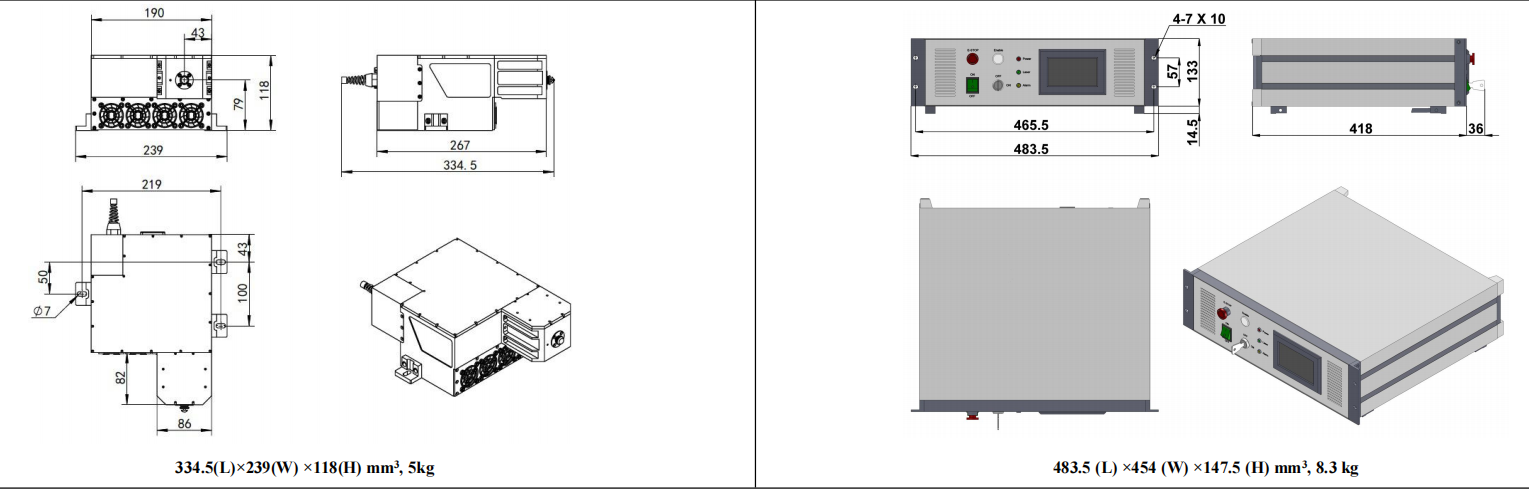

Beam height from base plate (mm)中心高 | 79 |
Cooled method制冷 | Air cooled |
Operating temperature (℃)工作温度 | 10~35 |
Power supply (220/110VAC)供电 | 220v数显可调 |
Expected lifetime (hours)寿命 | 10000 |
Warranty period保修 | 1 year |
