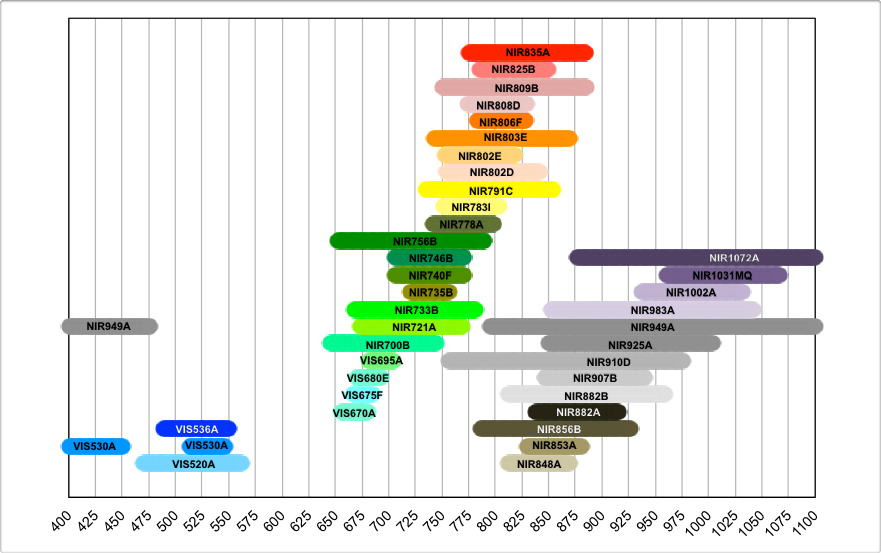

Below is a spectral graph (50% bandwidth) for our thermally stable NIR dyes, full spectra located on TDS.
QCR Solutions’ Near Infrared (NIR) Dyes and laser absorbing dyes are available in a wide spectral range (300nm – 2000nm). We have a large library of standard NIR absorbing dyes ranging from narrow notch to broad band absorbers that can attenuate selective near infrared wavelength regions. These NIR dyes can be used singly or in combinations to create custom spectral filters for multiple applications.
Compatibility of our NIR Dyes include solvents varnishes, inks and plastic matrix. The matrix of your application will strongly influence which absorber you select.
Near Infrared (NIR) Absorbing Dyes
NIR Dyes for Thermal Resins
QCR Number | Absorption Max (nm) | Absorptivity (L g-1 cm-1) | Technical Data Sheet (TDS) in PDF format |
| UV290A | 290 | 60 | 290 nm UV Dye TDS |
| VIS530A | 530 | 20 | 530 nm Visible Dye TDS |
| VIS590A | 590 | 240 | 590 nm Visible Dye TDS |
| NIR730A | 730 | 259 | 730 nm NIR Dye TDS |
| NIR791C | 791 | 53 | 791 nm NIR Dye TDS |
| NIR819C | 819 | 401 | 819 nm NIR Dye TDS |
| NIR907B | 907 | 210 | 907 nm NIR Dye TDS |
| NIR949C | 925 | 19 | 925 nm NIR Dye TDS |
| NIR983A | 983 | 66 | 983 nm NIR Dye TDS |
| NIR1031M | 1031 | 210 | 1031 nm NIR Dye TDS |
| NIR1072C | 1072 | 72 | 1072 nm NIR Dye TDS |
