305nm激光器
LLQ-305
全固态305nm的紫外激光器广泛用于紫外光固化，微电子，光盘雕刻，激光医疗，科学实验等
| Wavelength (nm)波长 | 305±2 |
| Operating mode工作方式 | Electro-optic Q-switched |
| Average power (W)平均功率 | 1~50mW (50mW@5kHz) |
| Average power (W) = Single pulse energy (mJ) * Rep. rate (kHz) | |
| Single pulse energy ( µJ)能量 | 1~ 10( 10µJ @5kHz) |
| Rep. rate (kHz)频率 | 5~ 10 |
| Pulse duration (ns)脉宽 | ~3 @5kHz |
| Peak power (kW)峰值功率 | 1~3.3 (3.3kW@ 10kHz) |
| Ave power stability (over 4 hours) 功率稳定性 | <3%, <5% |
| Warm-up time (minutes)上升时间 | < 10 |
| Beam divergence, full angle (mrad)发散角 | <5 |
| Beam diameter at the aperture ( 1/e2,mm)光斑尺寸 | <5 |

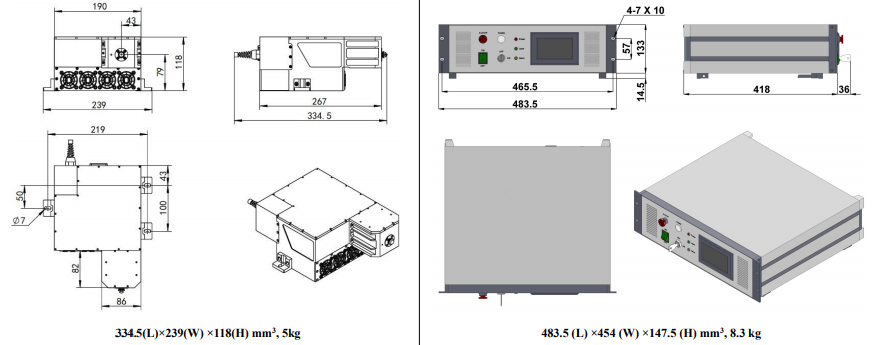

| Beam height from base plate (mm)中心高 | 79 |
| Cooled method制冷 | Water cooled |
| Operating temperature (C)工作温度 | 10~35 |
| Power supply (220/ 110VAC)电源 | PSU-AOM (3U) |
| Expected lifetime (hours)寿命 | 10000 |
| Warranty period保修 | 1 year |
