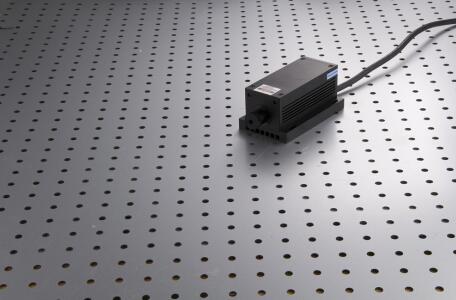

1064nm脉冲激光器


1，Repeat rate can be adjusted on power supply
2，Pulse can be precisely controlled by signal
Compact Size
Collimated straight beam
Easy use & maintenance free
Longlife operation
High efficiency
High reliability
APPLICATIONS
Thermal printing
Material Inspection
Scanning Biochemistry
Lidar
Specifications

 Model No.LLR1064H-Q
  Wavelength1064 nm
  Spatial ModeTEM00
  Average Output Power200~1000mW
  Single pulse energy5-100uJ
  Pulse Width5-50ns
  Peak Power500W~10KW
  Repetition rate10Hz~50K Hz
  Control rate0~50K Hz
  Beam Spot ShapeCircular, aspect ratio<1.1:1
  Pointing Stability<0.05 mrad
  Beam Diameter(1/e2)<1.5 mm
  Beam Divergence<1.5 mrad
  Power Stability*<±3% per 2 hrs
Beam Height29mm
  Temperature StabilizingTEC
  Warm Up Time<5 minutes
  Beam Quality (M2)<2
  Optimum Operating Temperature20~30oc
  Storage Temperature10~50oC
  MTTF**10,000 hrs
Laser head dimensions155(L)x77(W)x60(H)mm3
Power Supply220v数显可调
